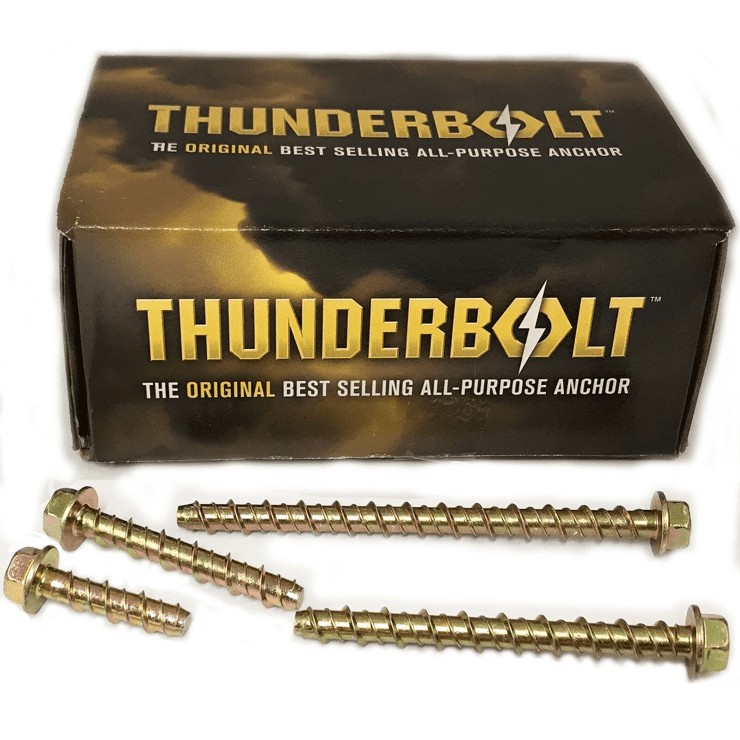

Thunderbolt M6 Flange Head Bolt Masonry Concrete Brick Anchor Screw

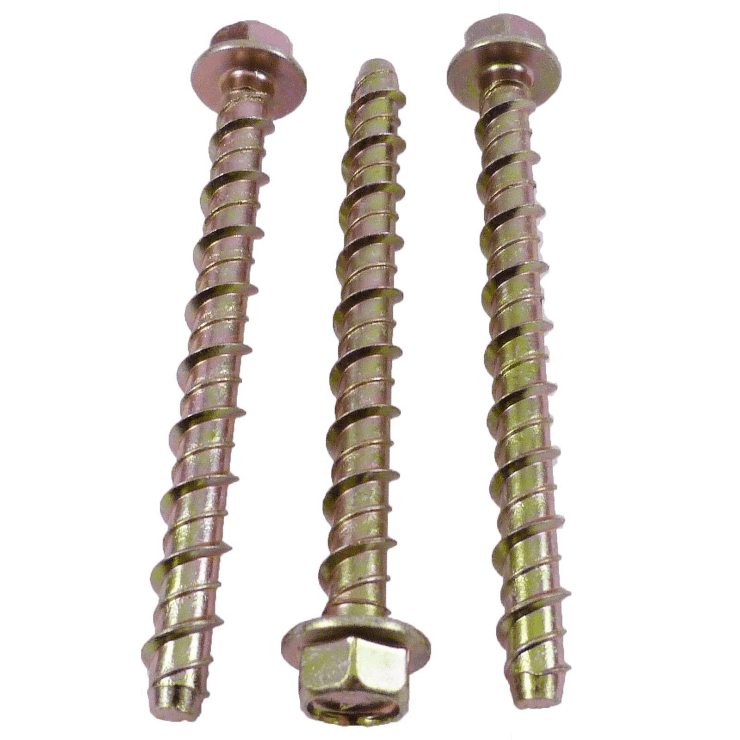

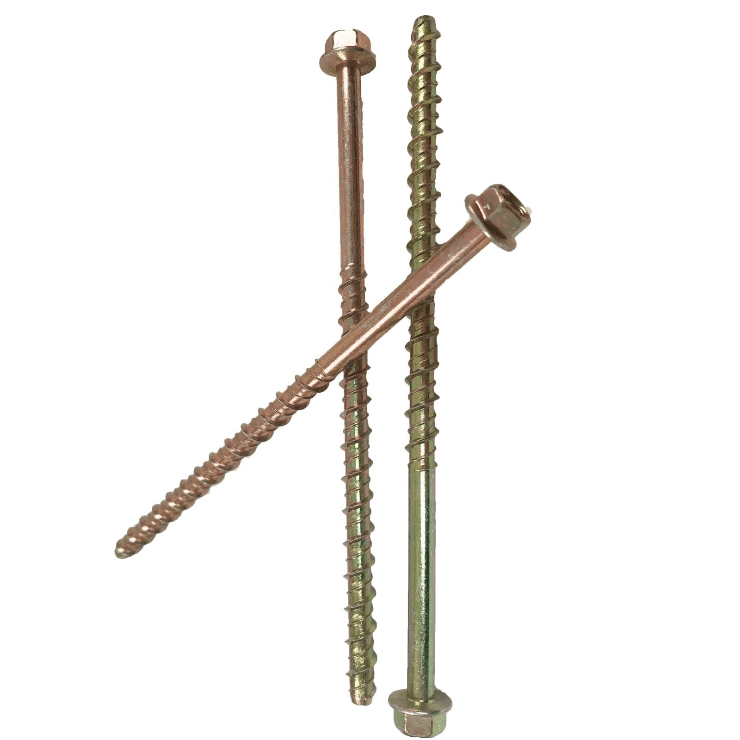

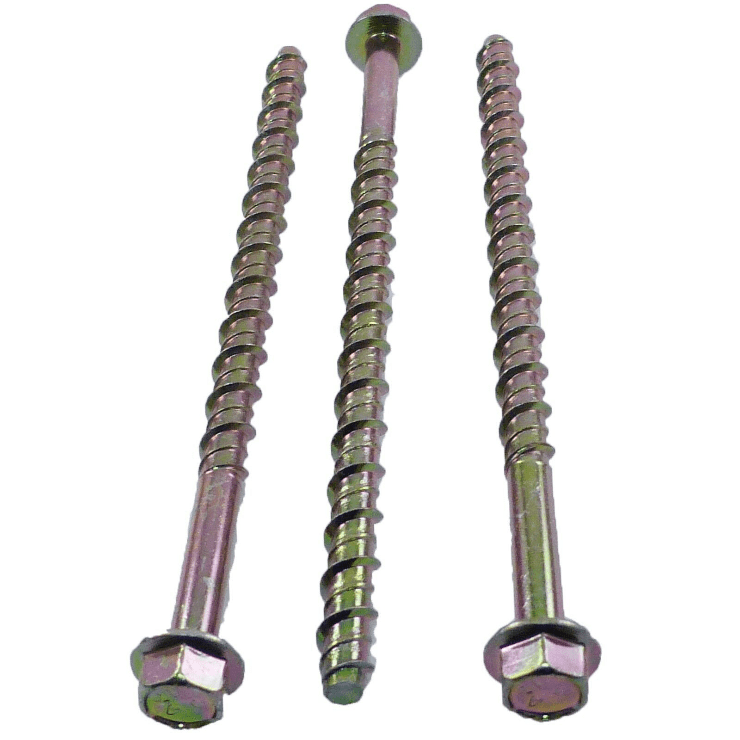

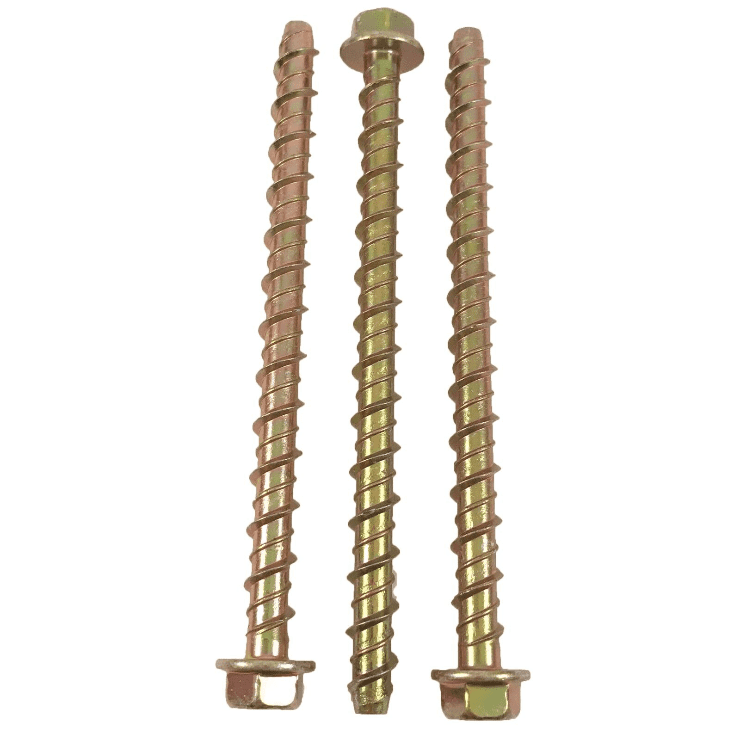

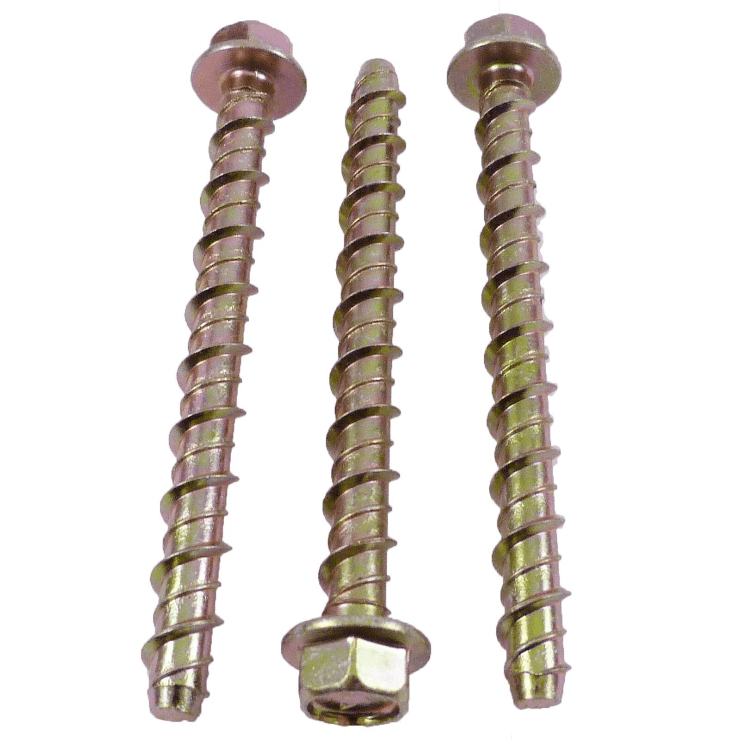

M6 FLANGE HEAD BOLT

These bolts are widely used in MASONRY to attach things like signs and plates to stone, concrete and brick.

These bolts are most effective when using the correct masonry drill bit, afterwards, just remove the dust by blowing into the hole and insert the bolt by hand. No need for plastic plugs at all.

These Bolts Are Coated In Yellow Zinc

Measurements:
M6 x 30mm
A/ Across Flats = 10mm
B/ Hole Clearance = 8mm
C/ Max Fixing Thickness = 5mm
D/ Minimum Embedment Depth = 25mm
E/ Over Drill Depth = 10mm
F/ Hole Size = 6mm

M6 x 50mm
A/ Across Flats = 10mm
B/ Hole Clearance = 10mm
C/ Max Fixing Thickness = 20mm
D/ Minimum Embedment Depth = 30mm
E/ Over Drill Depth = 10mm
F/ Hole Size = 6mm

M6 x 75mm
A/ Across Flats = 10mm
B/ Hole Clearance = 10mm
C/ Max Fixing Thickness = 45mm
D/ Minimum Embedment Depth = 30mm
E/ Over Drill Depth = 10mm
F/ Hole Size = 6mm

M6 x 100mm
A/ Across Flats = 10mm
B/ Hole Clearance = 10mm
C/ Max Fixing Thickness = 70mm
D/ Minimum Embedment Depth = 30mm
E/ Over Drill Depth = 10mm
F/ Hole Size = 6mm

M6 x 130mm
A/ Across Flats = 10mm
B/ Hole Clearance = 10mm
C/ Max Fixing Thickness = 100mm
D/ Minimum Embedment Depth = 30mm
E/ Over Drill Depth = 10mm
F/ Hole Size = 6mm

M6 x 150mm
A/ Across Flats = 10mm
B/ Hole Clearance = 10mm
C/ Max Fixing Thickness = 120mm
D/ Minimum Embedment Depth = 30mm
E/ Over Drill Depth = 10mm
F/ Hole Size = 6mm

We have an extensive range of Bolts and Bolting Products in various sizes and finishes. Browse our full selection of Bolts for more options.

If you need any assistance or bulk orders please do not hesitate to contact us.
