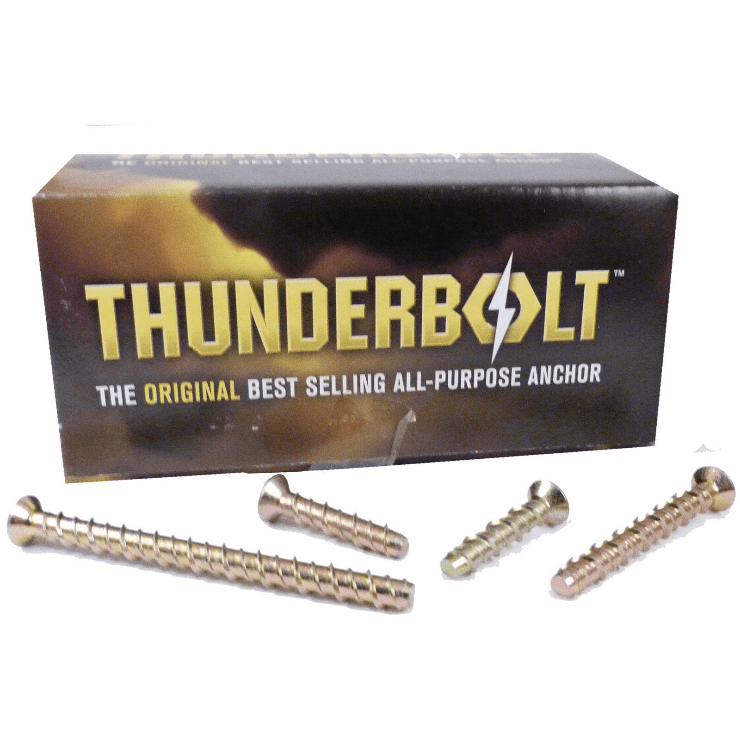

Thunderbolt M5 Torx Head Counter Sink Sunk Bolt Masonry Concrete Anchor Screw

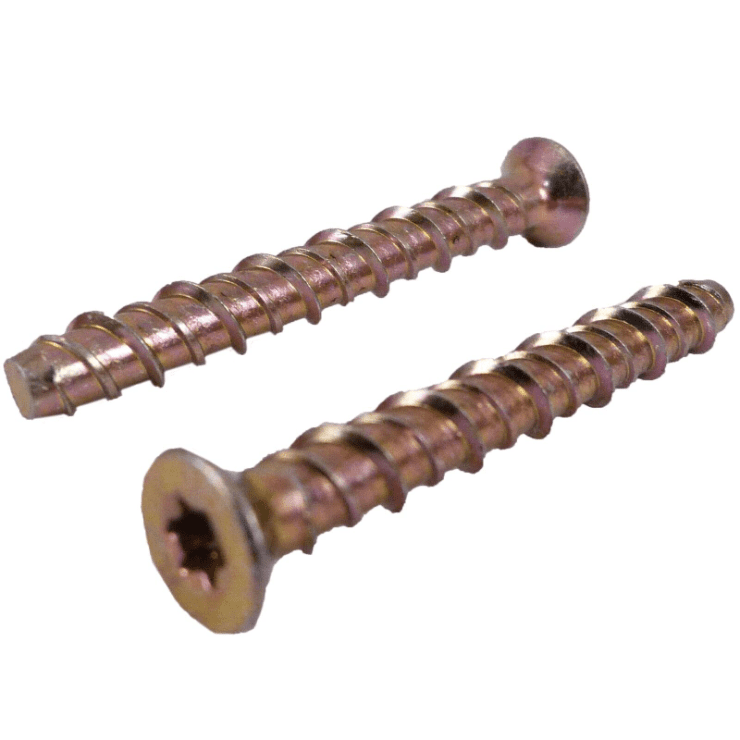

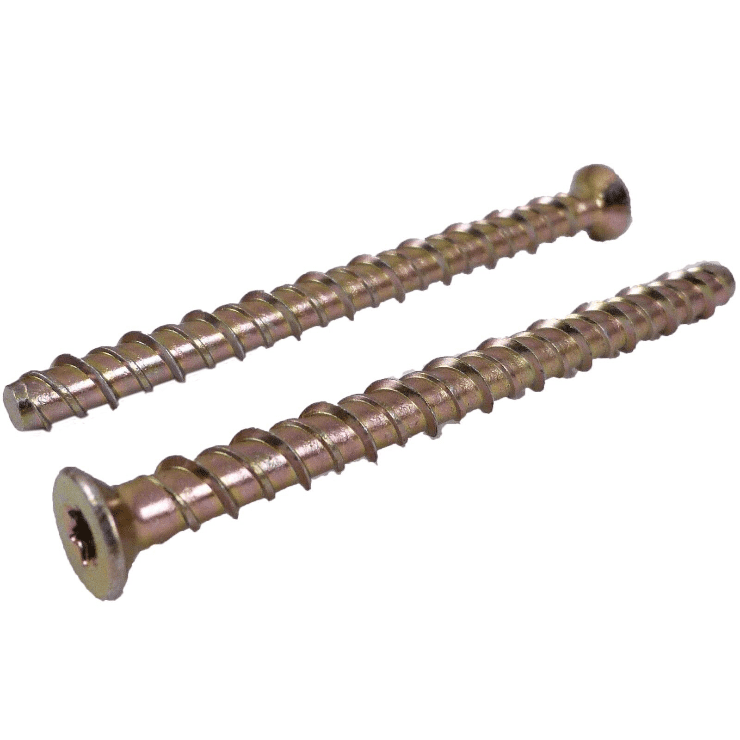

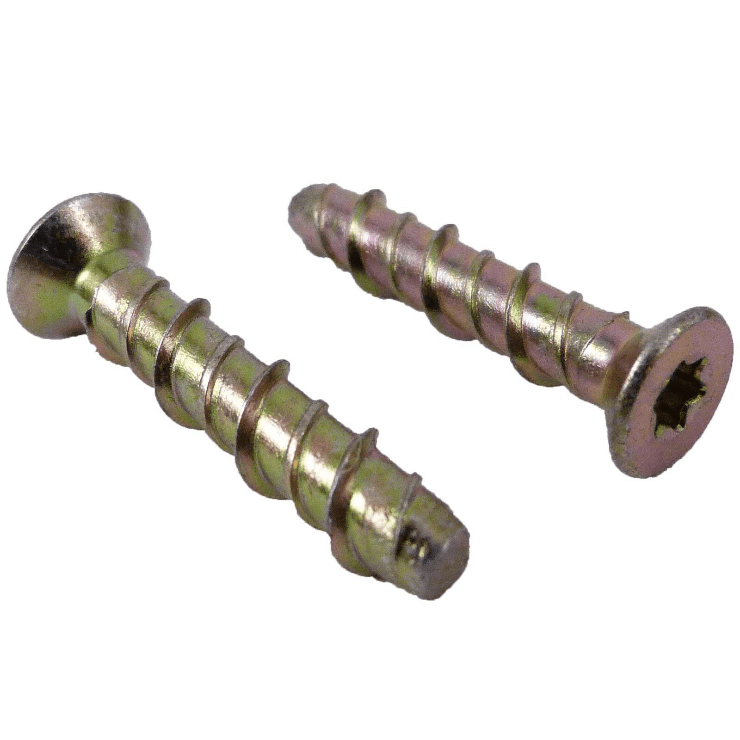

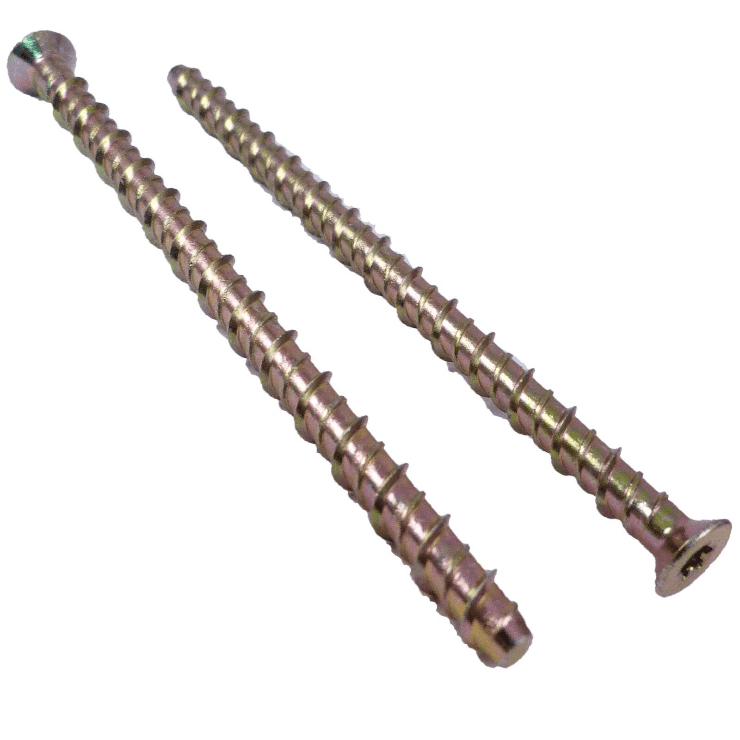

M5 TORX HEAD BOLT COUNTERSUNK

These bolts are widely used in MASONRY to attach things like signs and plates to stone, concrete and brick.

These bolts are most effective when using the correct masonry drill bit, afterwards, just remove the dust by blowing into the hole and insert the bolt by hand. No need for plastic plugs at all.

These Bolts Are Coated In Yellow Zinc

Measurements:
M5 x 30mm
A/ Drive Recess = T25
B/ Hole Clearance = 7mm
C/ Max Fixing Thickness = 5mm
D/ Minimum Embedment Depth = 25m
E/ Over Drill Depth = 7.5mm
F/ Hole Size = 5mm

M5 x 50mm
A/ Drive Recess = T25
B/ Hole Clearance = 7mm
C/ Max Fixing Thickness = 25mm
D/ Minimum Embedment Depth = 25m
E/ Over Drill Depth = 7.5mm
F/ Hole Size = 5mm

M5 x 75mm
A/ Drive Recess = T25
B/ Hole Clearance = 7mm
C/ Max Fixing Thickness = 50mm
D/ Minimum Embedment Depth = 25mm
E/ Over Drill Depth = 7.5mm
F/ Hole Size = 5mm

M5 x 100mm
A/ Drive Recess = T25
B/ Hole Clearance = 7mm
C/ Max Fixing Thickness = 75mm
D/ Minimum Embedment Depth = 25mm
E/ Over Drill Depth = 7.5mm
F/ Hole Size = 5mm

We have an extensive range of screws, bolts, washers and nuts and many other types of fixings and fittings for furniture repair and DIY projects in various sizes and finishes.

Browse our full selection for more options.

If you need any assistance or for bulk orders please do not hesitate to contact us.
