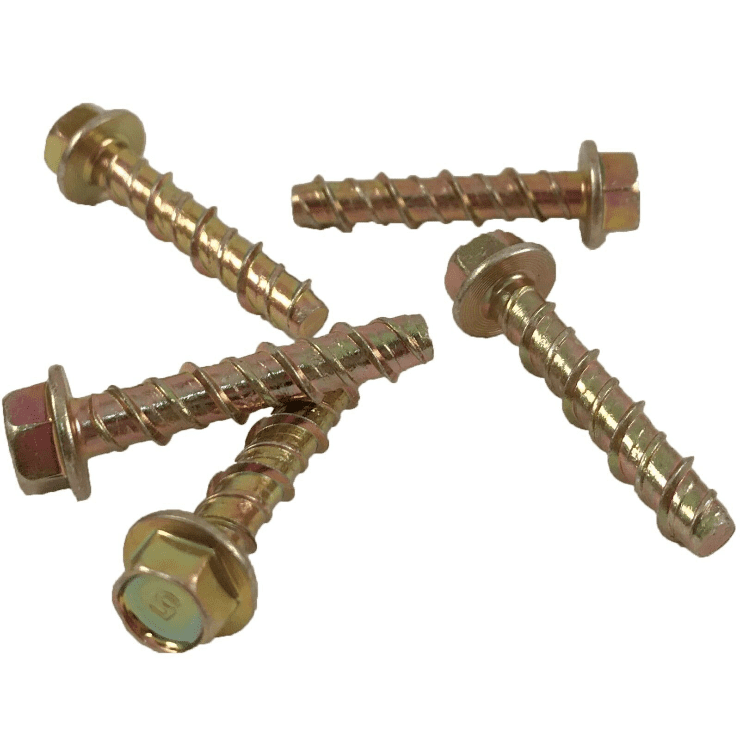

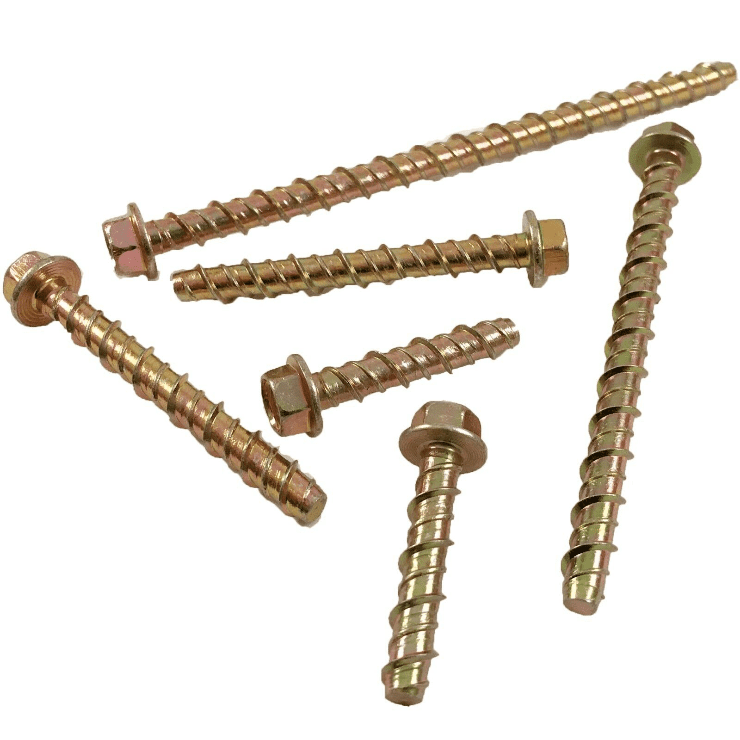

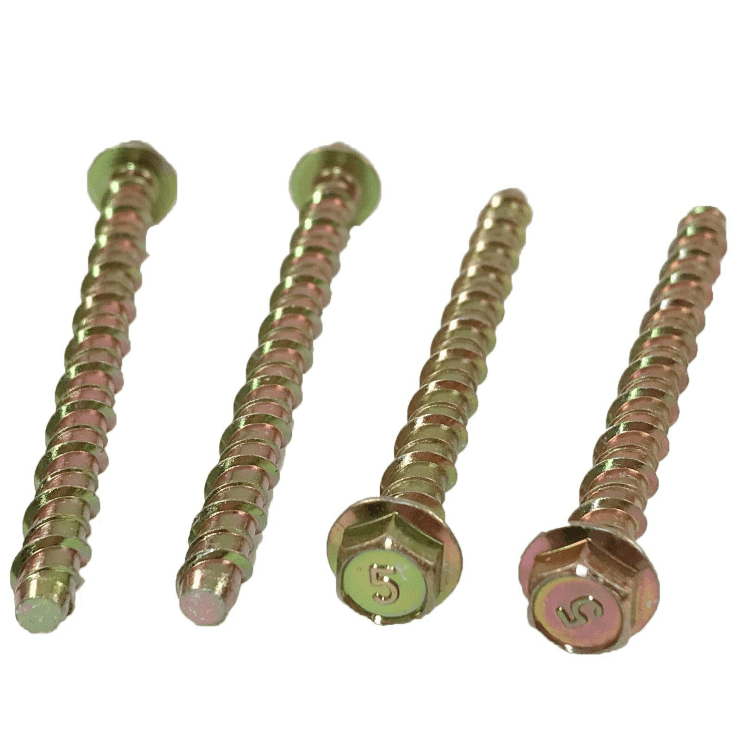

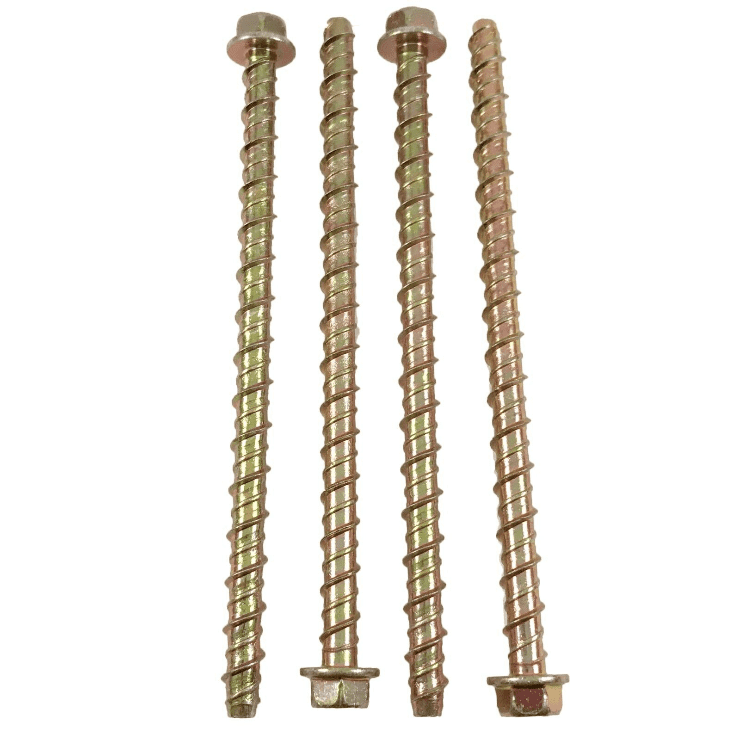

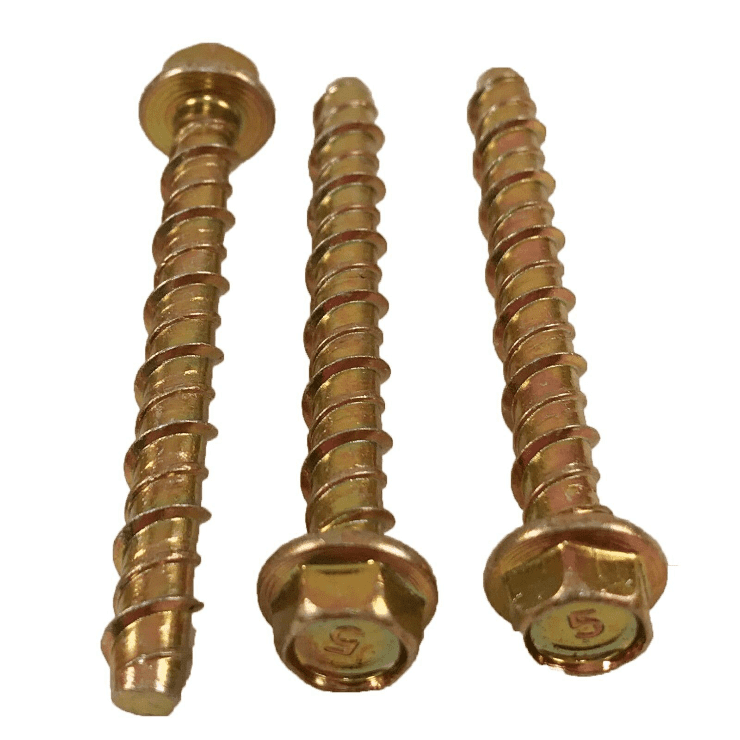

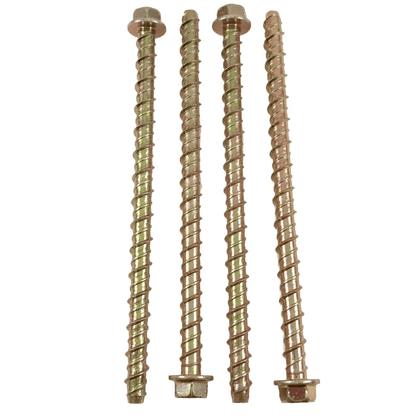

Thunderbolt M5 Flange Head Bolt Masonry Concrete Brick Anchor Screw

M5 FLANGE HEAD BOLT

These bolts are widely used in MASONRY to attach things like signs and plates to stone, concrete and brick.

These bolts are most effective when using the correct masonry drill bit, afterwards, just remove the dust by blowing into the hole and insert the bolt by hand. No need for plastic plugs at all.

These Bolts Are Coated In Yellow Zinc

Measurements:
M5 x 30mm
A/ Across Flats = 8mm
B/ Hole Clearance = 7mm
C/ Max Fixing Thickness = 5mm
D/ Minimum Embedment Depth = 25mm
E/ Over Drill Depth = 7.5mm
F/ Hole Size = 5mm

M5 x 50mm
A/ Across Flats = 8mm
B/ Hole Clearance = 7mm
C/ Max Fixing Thickness = 25mm
D/ Minimum Embedment Depth = 25mm
E/ Over Drill Depth = 7.5mm
F/ Hole Size = 5mm

M5 x 75mm
A/ Across Flats = 8mm
B/ Hole Clearance = 7mm
C/ Max Fixing Thickness = 50mm
D/ Minimum Embedment Depth = 25mm
E/ Over Drill Depth = 7.5mm
F/ Hole Size = 5mm

M5 x 100mm
A/ Across Flats = 8mm
B/ Hole Clearance = 7mm
C/ Max Fixing Thickness = 75mm
D/ Minimum Embedment Depth = 25mm
E/ Over Drill Depth = 7.5mm
F/ Hole Size = 5mm

We have an extensive range of bolts and bolting products and furniture fittings including connector bolts, cap nuts, insert nuts, tee nuts and cross dowels in various sizes and finishes.

Browse our full selection for more options.

If you need any assistance or for bulk orders please do not hesitate to contact us.
