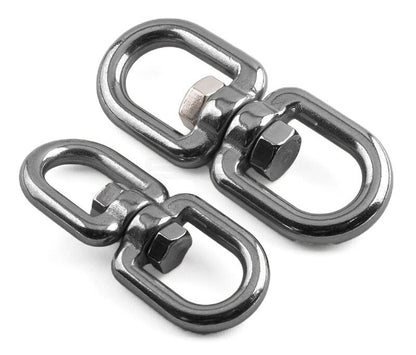

Swivel Eye Eye Shackle A4 Stainless Steel 316 Marine Mooring Chain 5mm To 25mm



Prevent any twisting or snagging to your anchor line with these robust chain eyes and eye swivels.

Formed with A4 Marine grade stainless steel provides these shackles with maximum corrosion resistance, making them ideal for marine use around salt water environments.

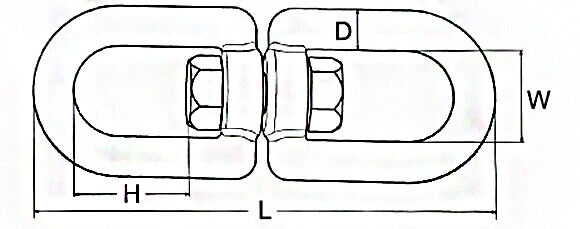

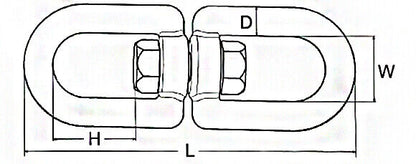

Be sure to check the provided size reference in the listing images.



[D] - Shackle thickness

[H] - Distance from inside shackle to bolt head

[L] - Total Length of Shackle

[W] - Inner shackle width





               [D]            [H]              [L]              [W]          [Breaking Load]

M5   |     5mm  |  12.5mm   |     55mm   |     2.5mm   |      ~540kg

M6   |     6mm  |     15mm   |     66mm   |      15mm   |      ~785kg

M8   |     8mm  |     20mm   |     88mm   |      20mm   |      ~1,417kg

M10 |   10mm  |     25mm   |   110mm   |      25mm   |      ~2,222kg

M13 |   13mm  |  32.5mm   |   143mm   |   32.5mm   |      ~3,263kg

M16 |   16mm  |     40mm   |   176mm   |      40mm   |      ~5,812kg

M19 |   19mm  |     50mm   |   231mm   |      41mm   |      ~9,075kg

M22 |   22mm  |     50mm   |   254mm   |      47mm   |      ~10,982kg

M25 |   25mm  |     68mm   |   295mm   |      63mm   |      ~13,317kg
