Quick Link Chain Shackle A4 316 Marine Grade Stainless Steel M3-M12

Quick links feature a secure screw lock nut, often used for repairing or extending chains and a variety of other rigging applications.

These durable fasteners are ideal for the repair, extension or connection of chains and shackles. Easy to use and a secure fasten.

Material

A4, 316 Marine Grade Stainless Steel. Marine grade stainless steel provides maximum corrosion resistance in salt-water marine environments.

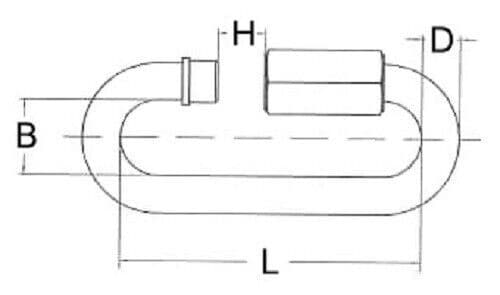

Dimensions (Please refer to the provided image for the sizing chart reference)

[B]=Interior Width [D]=Thickness [H]=Maximum Opening Width [L]=Interior Length

1 kN is equal to 101 Kilograms

M3; [B] 9mm [D] 3mm [H] 4mm [L] 25mm - BREAKING LOAD: 2.8kN

M4; [B] 12mm [D] 4mm [H] 5.5mm [L] 32mm - BREAKING LOAD: 5kN

M5; [B] 13mm [D] 5mm [H] 6..5mm [L] 39mm - BREAKING LOAD: 7.9kN

M6; [B] 14.5mm [D] 6mm [H] 7.5mm [L] 45mm - BREAKING LOAD: 11.3kN

M8; [B] 17.5mm [D] 8mm [H] 10mm [L] 58mm - BREAKING LOAD: 20.1kN

M10; [B] 21mm [D] 10mm [H] 12mm [L] 72mm - BREAKING LOAD: 31.4kN

M12; [B] 24mm [D] 12mm [H] 14.5mm [L] 81mm - BREAKING LOAD: 45.2kN
