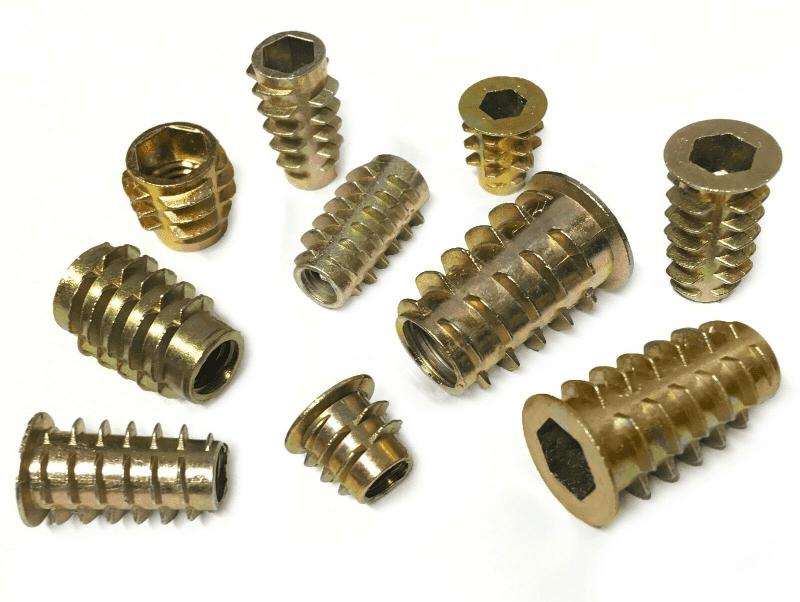

M8 Threaded Hex Drive Type D Or E Wood Insert Furniture Nuts

D / E TYPE INSERT NUTS.

Very easy to use simply drill the recommended hole for the size insert, screw the self tapping body into the material.
The unique external thread ensures strong resistance against pull out and the flanged head of D-Type inserts prevents splitting of the surfaces and driving the Insert in too far.
Insert Nuts provide a strong, permanent thread for wood and wood based sheet materials

Colour finish: Zinc & yellow (may vary)

Material: Zinc Alloy Die Cast

We have the most choice of size and quantity on Ebay (if you require a different quantity we will be happy to provide a price)

SIZE:           RECOMMENDED HOLE SIZE:

D Type

M8 x 13       11.0 - 11.5 mm
M8 x 20       11.0 - 11.5 mm
M8 x 25       11.0 - 11.5 mm

E-Type
M8 x 13       11.0 - 11.5 mm
M8 x 20       11.0 - 11.5 mm

(Always start smaller you can always make it bigger)
