M6 M8 M10 Chimney U Nuts Lug Nut Speed Fasteners Spire Captive Clips Fixings

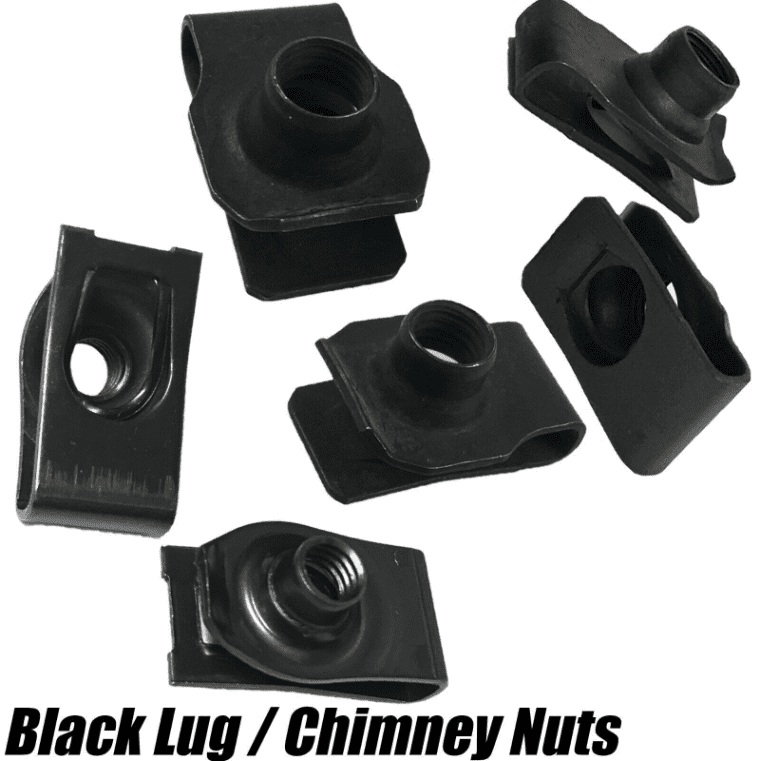

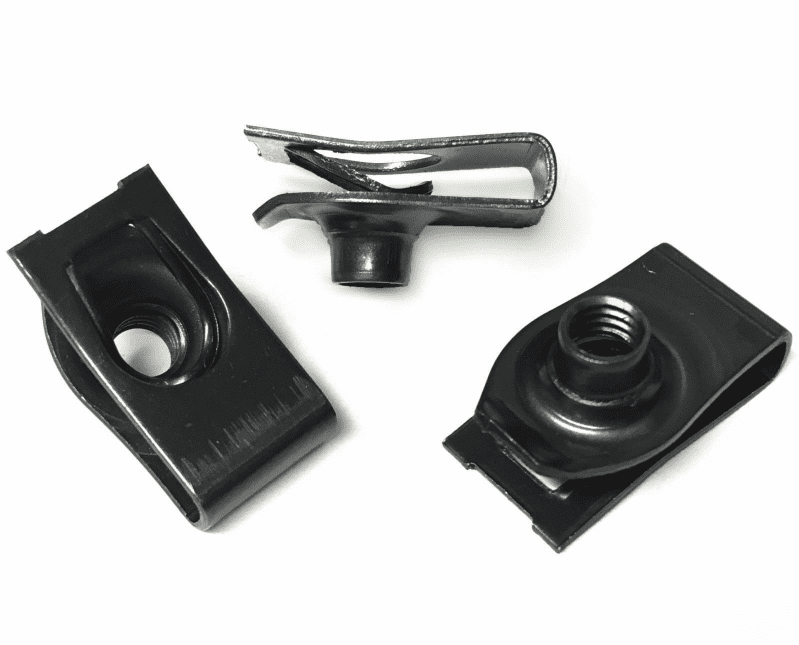

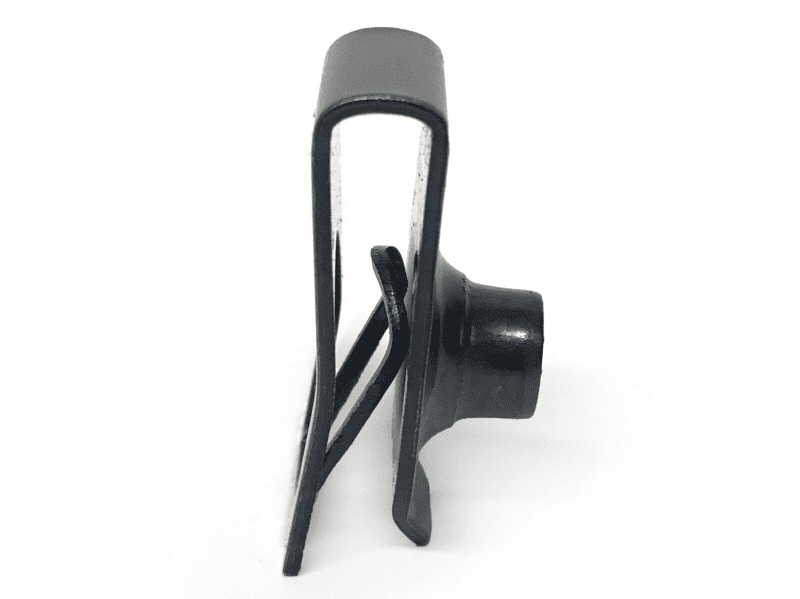

Threaded Chimney U-Nuts

Also known as Speed fasteners / Lug Nuts

Used to secure motorcycle fairings, bodywork panels, and many other types of panel providing a strong and secure fixing for applications where two or more panels require holding together..

M6
    Width 15mm.
    Full Length 21mm.
    Length from centre of thread to blocked end11mm.

M8
    Width 15mm.
    Full Length 26mm.
    Length from centre of thread to blocked end 13mm.

M10
    Width 25mm.
    Full Length 35mm.
    Panel Depth 5mm.
    Length from centre of thread to blocked end 18mm

Zinc Plated with a Black Finish.
