M6 Jaw Turnbuckle Rigging Straining Screw A4 316 Marine Stainless Steel Tension
M6 Jaw Turnbuckle Rigging Straining Screw A4 316 Marine Stainless Steel Tension
SKU:RIG-SCREW-A4-JAW / JAW-M6_1
Regular price
£7.49 GBP
Regular price
Sale price
£7.49 GBP
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description

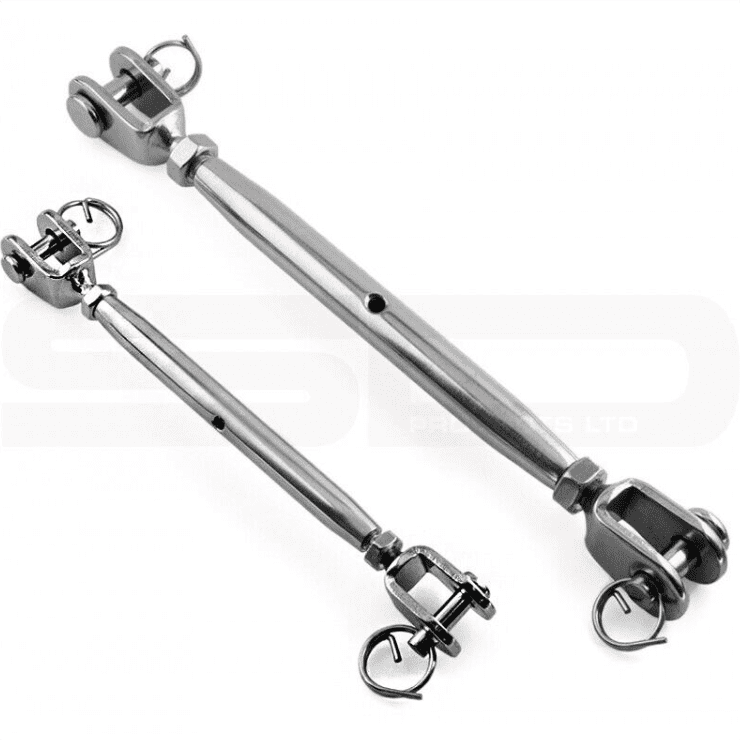

Rigging screws, also known as a tension screw or a turnbuckle, these fasteners are used to adjust and tighten loads, allowing increased tension between two components. Often used in marine, sailing, boating and industrial applications.
Boasting a high strength and breaking load, these heavy duty parts are perfect for the job.
Material
A4, 316 Marine Grade Stainless Steel. Marine grade stainless steel provides maximum corrosion resistance in salt-water marine environments.

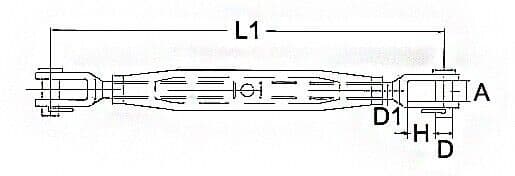

Dimensions (Please refer to the provided image for the sizing chart reference)
[L1]=Rig Screw Length [A]=Width of fastener [H]=Interior Length of fastener
(D/D1 are both equal to the size of bolt chosen, EG: M4 = 4mm D/D1)
M6; [L1] 150mm [A] 7.5mm [H] 10mm - BREAKING LOAD: 777KG
Please note the breaking loads shown are an approximation and can vary, please conduct your own test.
