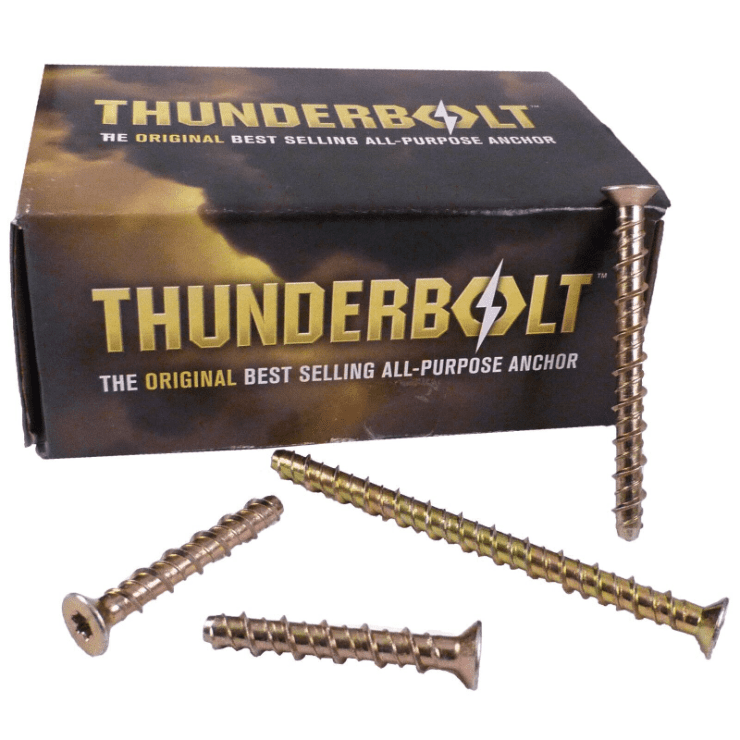

M6 Genuine Thunder Bolt Torx Countersunk Masonry Concrete Anchor Screw Bolt

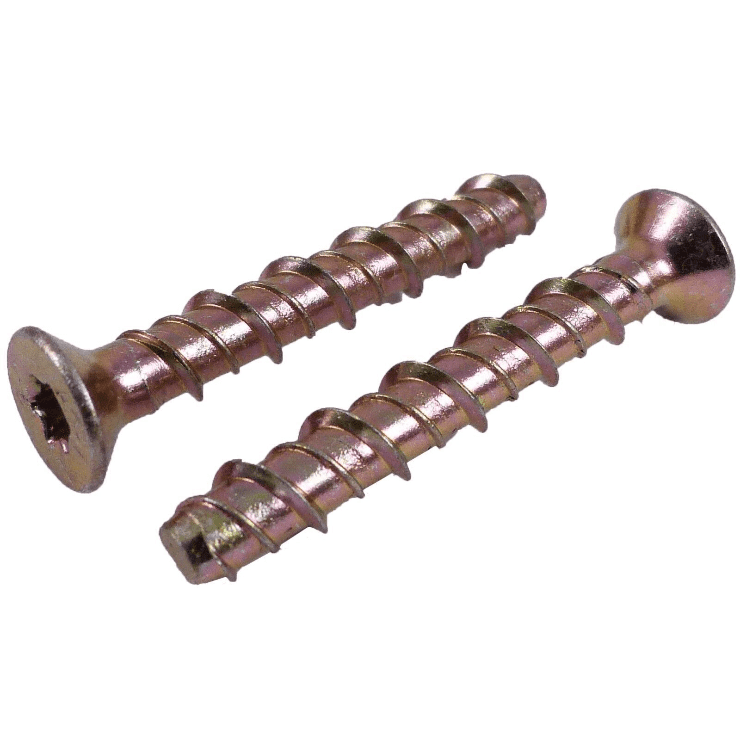

M6 TORX HEAD BOLT COUNTERSUNK

These bolts are widely used in MASONRY to attach things like signs and plates to stone, concrete and brick.

These bolts are most effective when using the correct masonry drill bit, afterwards just remove the dust by blowing into the hole and insert the bolt by hand. No need for plastic plugs at all.
These Bolts Are Coated In Yellow Zinc
Measurements:


M6 x 50mm
A/ Drive Recess = T30
B/ Hole Clearance = 10mm
C/ Max Fixing Thickness = 20mm
D/ Minimum Embedment Depth = 30mm
E/ Over Drill Depth = 10mm
F/ Hole Size = 6mm

M6 x 75mm
A/ Drive Recess = T30
B/ Hole Clearance = 10mm
C/ Max Fixing Thickness = 45mm
D/ Minimum Embedment Depth = 30mm
E/ Over Drill Depth = 10mm
F/ Hole Size = 6mm

M6 x 100mm
A/ Drive Recess = T30
B/ Hole Clearance = 10mm
C/ Max Fixing Thickness = 70mm
D/ Minimum Embedment Depth = 30mm
E/ Over Drill Depth = 10mm
F/ Hole Size = 6mm


M6 x 130mm
A/ Drive Recess = T30
B/ Hole Clearance = 10mm
C/ Max Fixing Thickness = 100mm
D/ Minimum Embedment Depth = 30mm
E/ Over Drill Depth = 10mm
F/ Hole Size = 6mm

M6 x 50mm
A/ Drive Recess = T30
B/ Hole Clearance = 10mm
C/ Max Fixing Thickness = 120mm
D/ Minimum Embedment Depth = 30mm
E/ Over Drill Depth = 10mm
F/ Hole Size = 6mm
