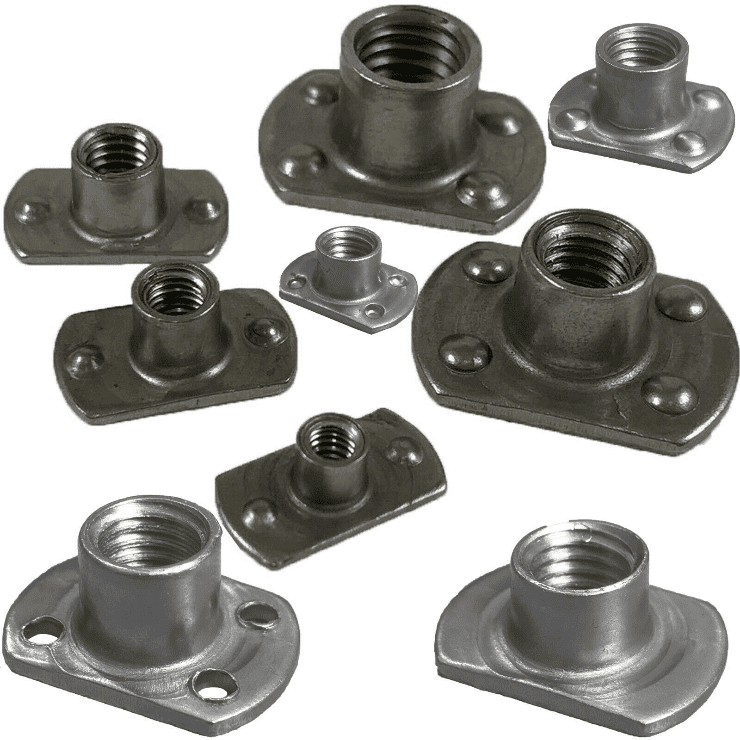

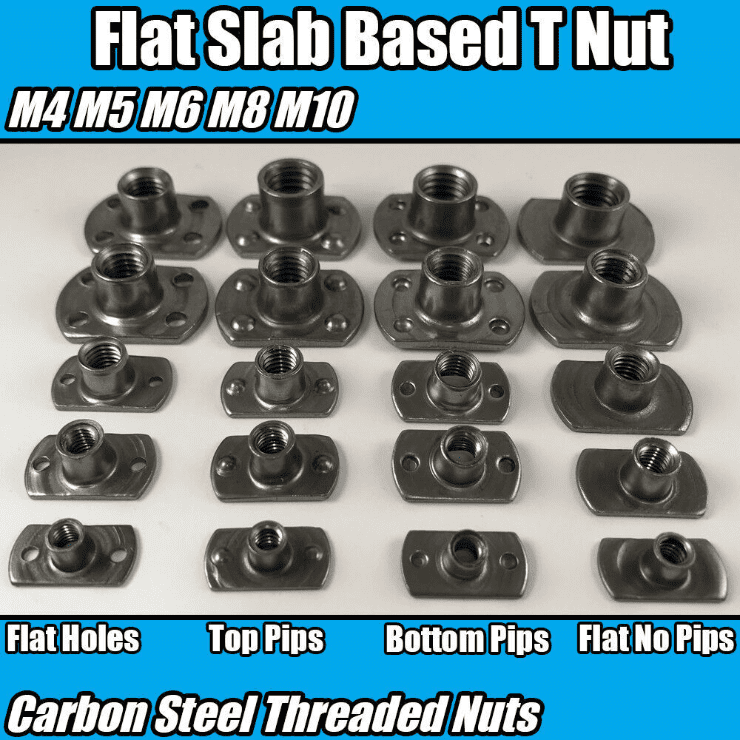

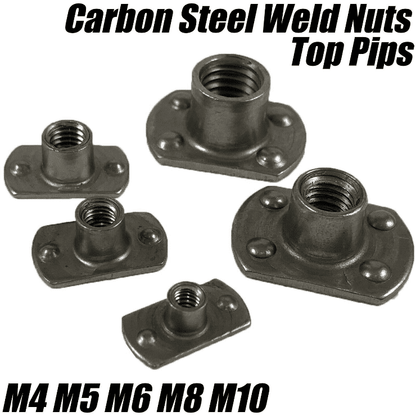

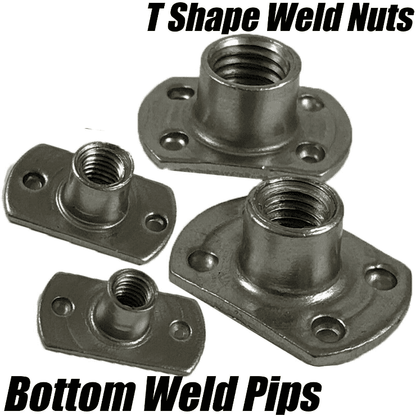

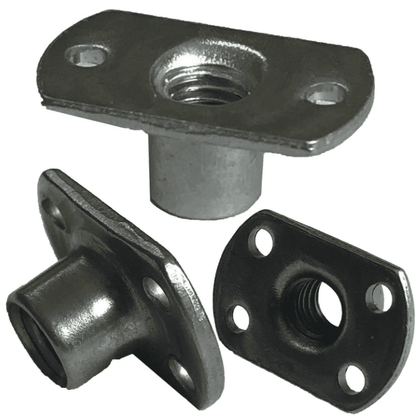

M4 M5 M6 M8 M10 Carbon Steel Tee 2 4 Spot Slab Based Welded Pips, Holes & Flat

M4 M5 M6 M8 M10 Carbon Steel Tee 2 4 Spot Slab Based Welded Pips, Holes & Flat

Measurements:

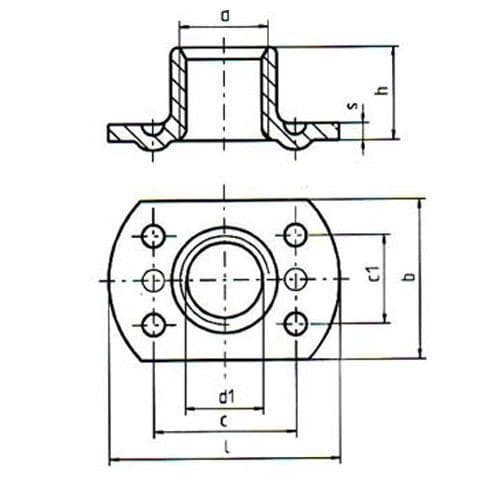

Please use the diagram provided above for more accurate measurements.

M4
17mm Body (l)
9mm Body (b)
6mm Full Length Spire (h)

M5
19mm Body (l)
11mm Body (b)
7mm Full Length Spire (h)
15mm pip to pip (c)

M6
19mm Body (l)
11mm Body (b)
7mm Full Length Spire (h)
15mm pip to pip (c)

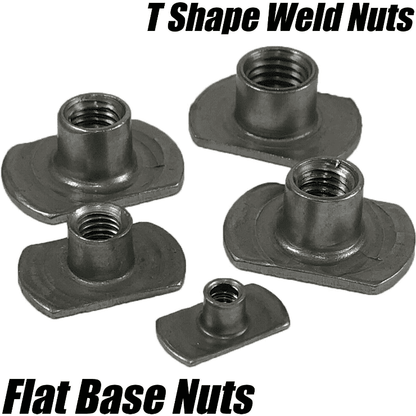

Flat/ Slab Version
22mm Body (l)
14mm Body (b)
8mm Full Length Spire (h)

M8
21mm Body (l)
18mm Body (b)
11mm Full Length Spire (h)
11mm pip to pip (c1)

M10
21mm Body (l)
18mm Body (b)
10mm Full Length Spire (h)
