M3 M4 M5 M6 M8 M10 M12 Cage Nut Square Hole Server Rack Mount Cabinet Pc Fixing

CAGE NUTS MOUNTING FASTENERS

Item Specifics:
M3
Panel Width 1.0 - 1.6mm
Hole Size 6.8mm x 6.8mm

M4
Panel Width 1.7 - 2.6mm
Hole Size 9.5 x 9.5mm

M5
Panel Width 1.7 - 2.6mm
Hole Size 9.5 x 9.5mm

M6
Panel Width 0.7 - 3.0mm
Hole Size 9.5 x 9.5mm

M8
Panel Width 0.7 - 3.0mm
Hole Size 12.3 x 12.3mm

M12
Panel Width 1.8 - 3.2mm
Hole Size 14 x 14mm

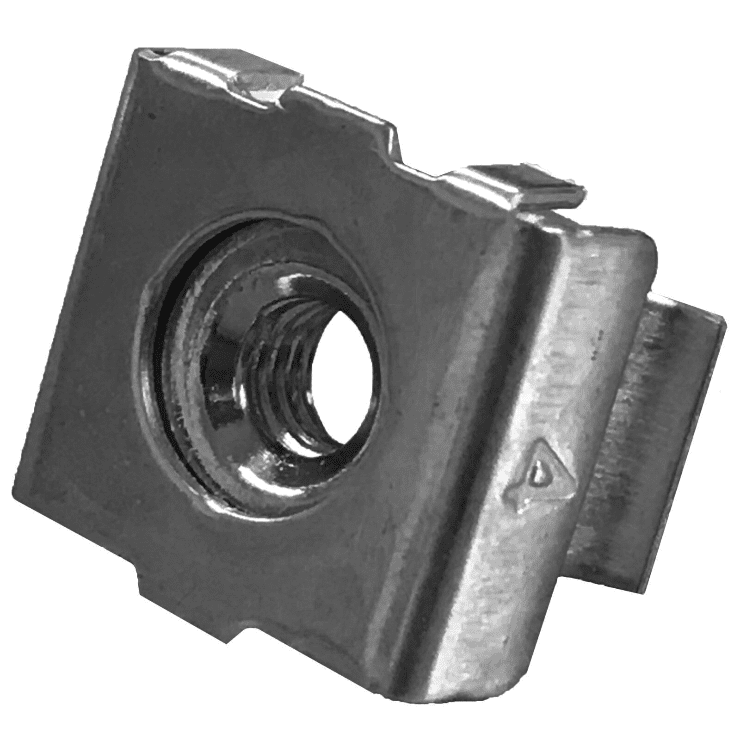

Cage nuts (also known as clip nuts) are widely used in rack mounting and computer construction. The cage of this type of nut is generally clipped to a square hole in sheet metal, or to a metal mesh, creating a light-duty fixture which is versatile, easy to install, and easy replaced if damaged.

One of the major advantages of a cage nut is that it allows a variety of fasteners to be used within an assembly, as only a basic square hole is needed for installation.

Square cage nut design for racks and cabinets with square holes

Cage nuts have both the advantage of fast installation and strength of a steel nut, which floats within the spring steel cage to assist in screw alignment

We have an extensive range of cage nuts and cage nut sets complete with screws and washers, all in various sizes and finishes. Browse our full selection of marine products for more options.

If you need any assistance or for bulk orders please do not hesitate to contact us.
