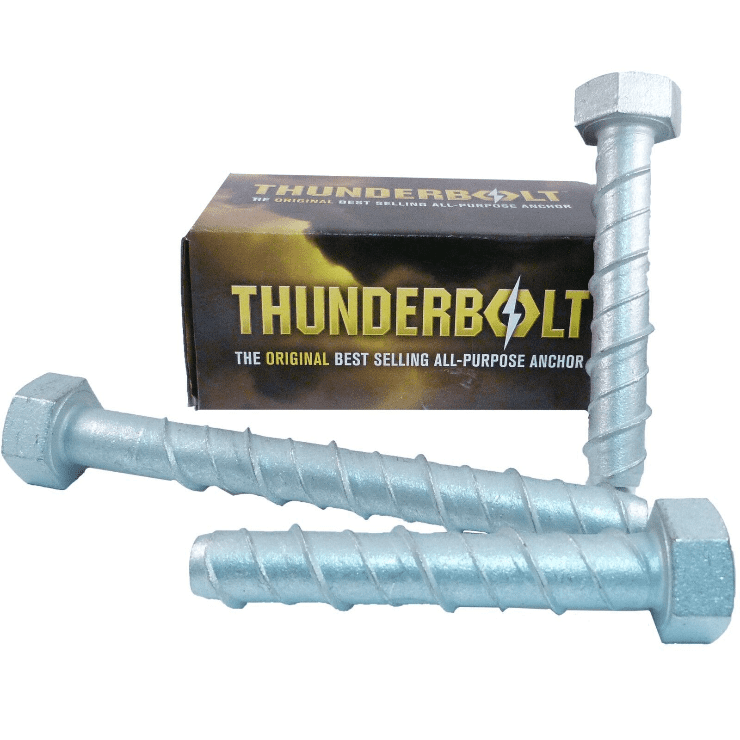

M16 Hex Head Bolt Genuine Thunderbolt Masonry Concrete Brick Anchor Screw

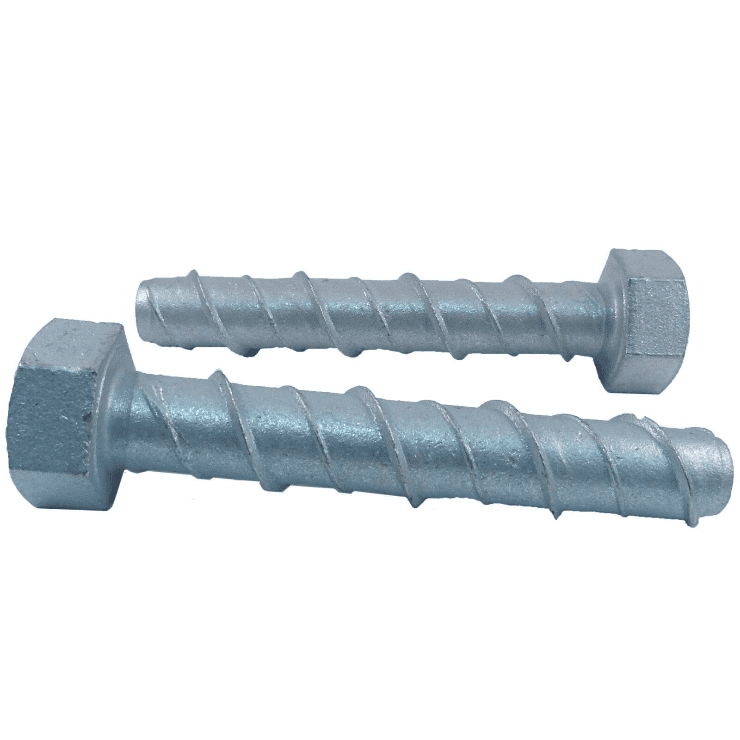

M16 HEX HEAD BOLT
These bolts are widely used in MASONRY to attach things like signs and plates to stone, concrete and brick.

These bolts are most effective when using the correct masonry drill bit, afterwards just remove the dust by blowing into the hole and insert the bolt by hand. No need for plastic plugs at all.
These Bolts Are Galvanized for Extra Protection From The Elements.


Measurements:

M16 x 100mm
A/ Across Flats = 27mm
B/ Hole Clearance = 20mm
C/ Max Fixing Thickness = 20mm
D/ Minimum Embedment Depth = 80mm
E/ Over Drill Depth = 32mm
F/ Hole Size = 16mm

M16 x 150mm
A/ Across Flats = 27mm
B/ Hole Clearance = 20mm
C/ Max Fixing Thickness = 70mm
D/ Minimum Embedment Depth = 80mm
E/ Over Drill Depth = 32mm
F/ Hole Size = 16mm

M16 x 200mm
A/ Across Flats = 27mm
B/ Hole Clearance = 20mm
C/ Max Fixing Thickness = 120mm
D/ Minimum Embedment Depth = 80mm
E/ Over Drill Depth = 32mm
F/ Hole Size = 16mm
