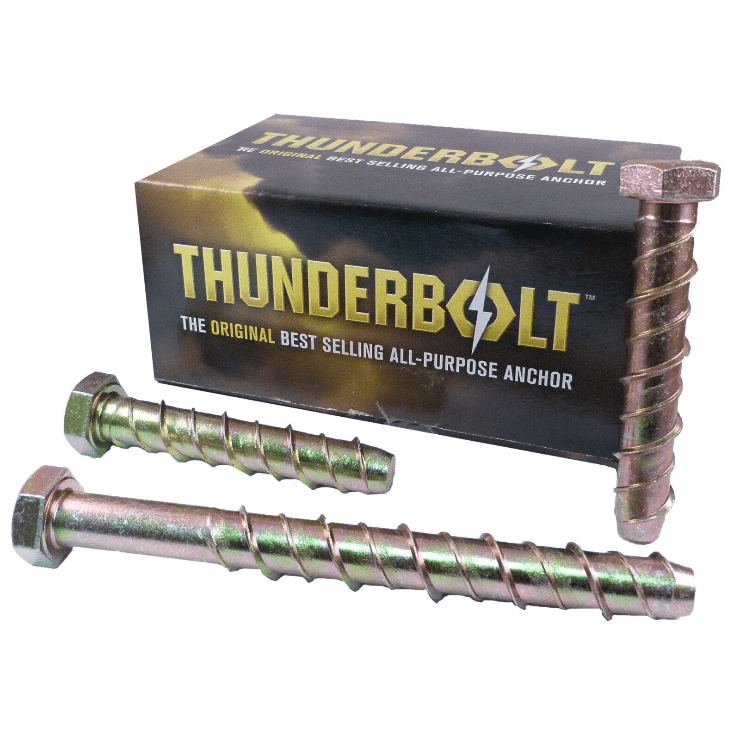

M12 Hex Head Bolt Genuine Thunderbolt Masonry Concrete Brick Anchor

M12 HEX HEAD BOLT
These bolts are widely used in MASONRY to attach things like signs and plates to stone, concrete and brick.

These bolts are most effective when using the correct masonry drill bit, afterwards just remove the dust by blowing into the hole and insert the bolt by hand. No need for plastic plugs at all.
These Bolts Are Coated In Yellow Zinc


Measurements:

M12 x 60mm
A/ Across Flats = 19mm
B/ Hole Clearance = 16mm
C/ Max Fixing Thickness = 15mm
D/ Minimum Embedment Depth = 60mm
E/ Over Drill Depth = 25mm
F/ Hole Size = 12mm

M12 x 75mm
A/ Across Flats = 19mm
B/ Hole Clearance = 16mm
C/ Max Fixing Thickness = 40mm
D/ Minimum Embedment Depth = 60mm
E/ Over Drill Depth = 25mm
F/ Hole Size = 12mm

M12 x 130mm
A/ Across Flats = 19mm
B/ Hole Clearance = 16mm
C/ Max Fixing Thickness = 70mm
D/ Minimum Embedment Depth = 60mm
E/ Over Drill Depth = 25mm
F/ Hole Size = 12mm

M12 x 150mm
A/ Across Flats = 19mm
B/ Hole Clearance = 16mm
C/ Max Fixing Thickness = 90mm
D/ Minimum Embedment Depth = 60mm
E/ Over Drill Depth = 25mm
F/ Hole Size = 12mm

M12 x 200mm
A/ Across Flats = 19mm
B/ Hole Clearance = 16mm
C/ Max Fixing Thickness = 140mm
D/ Minimum Embedment Depth = 60mm
E/ Over Drill Depth = 25mm
F/ Hole Size = 12mm
