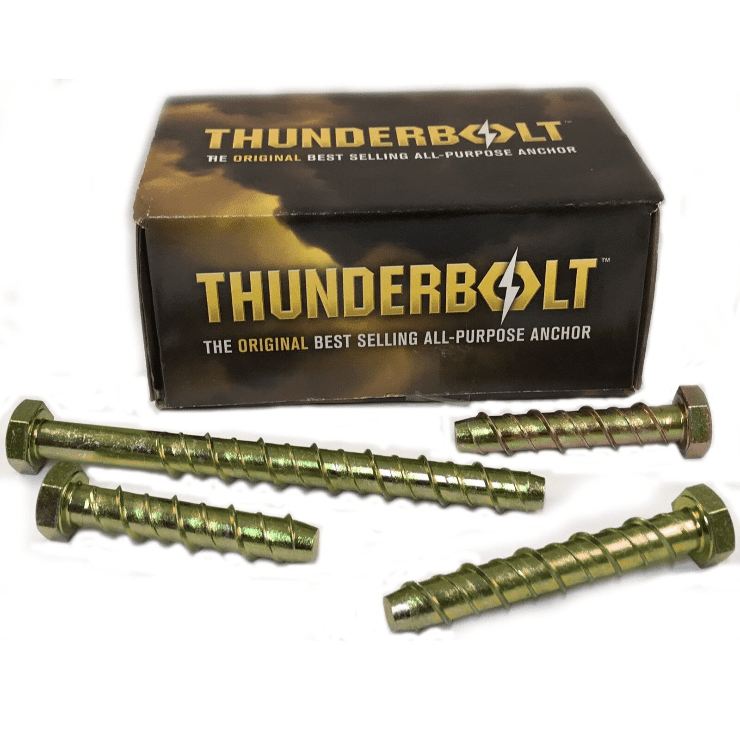

M10 Hex Head Bolt New Genuine Thunderbolt Masonry Concrete Brick Anchor Screw

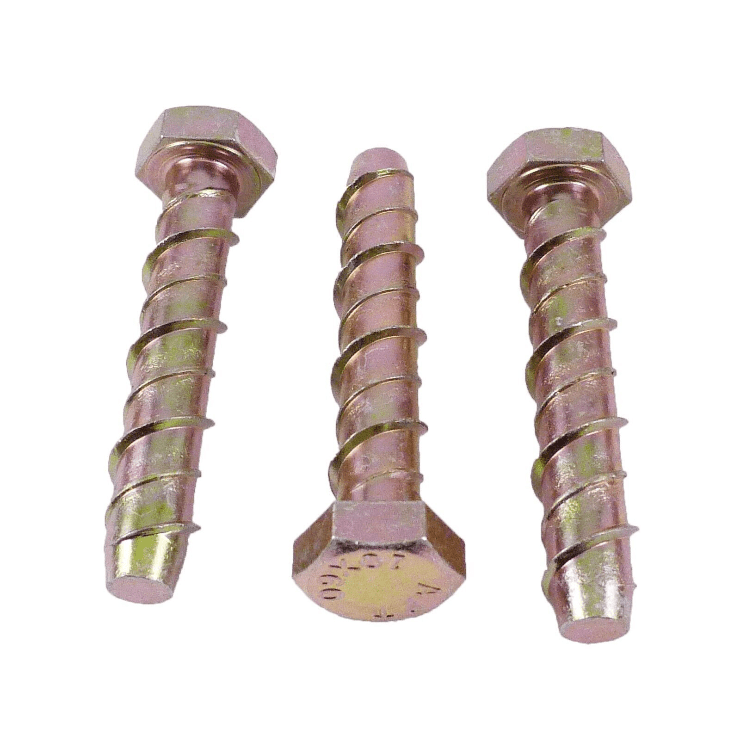

M10 HEX HEAD BOLT
These bolts are widely used in MASONRY to attach things like signs and plates to stone, concrete and brick.

These bolts are most effective when using the correct masonry drill bit, afterwards just remove the dust by blowing into the hole and insert the bolt by hand. No need for plastic plugs at all.
These Bolts Are Coated In Yellow Zinc
Measurements:

M10 x 60mm
A/ Across Flats = 17mm
B/ Hole Clearance = 14mm
C/ Max Fixing Thickness = 10mm
D/ Minimum Embedment Depth = 50mm
E/ Over Drill Depth = 20mm
F/ Hole Size = 10mm

M10 x 75mm
A/ Across Flats = 17mm
B/ Hole Clearance = 14mm
C/ Max Fixing Thickness = 25mm
D/ Minimum Embedment Depth = 50mm
E/ Over Drill Depth = 20mm
F/ Hole Size = 10mm

M10 x 100mm
A/ Across Flats = 17mm
B/ Hole Clearance = 14mm
C/ Max Fixing Thickness = 50mm
D/ Minimum Embedment Depth = 50mm
E/ Over Drill Depth = 20mm
F/ Hole Size = 10mm

M10 x 130mm
A/ Across Flats = 17mm
B/ Hole Clearance = 14mm
C/ Max Fixing Thickness = 80mm
D/ Minimum Embedment Depth = 50mm
E/ Over Drill Depth = 20mm
F/ Hole Size = 10mm

M10 x 150mm
A/ Across Flats = 17mm
B/ Hole Clearance = 14mm
C/ Max Fixing Thickness = 100mm
D/ Minimum Embedment Depth = 50mm
E/ Over Drill Depth = 20mm
F/ Hole Size = 10mm
