Jubilee

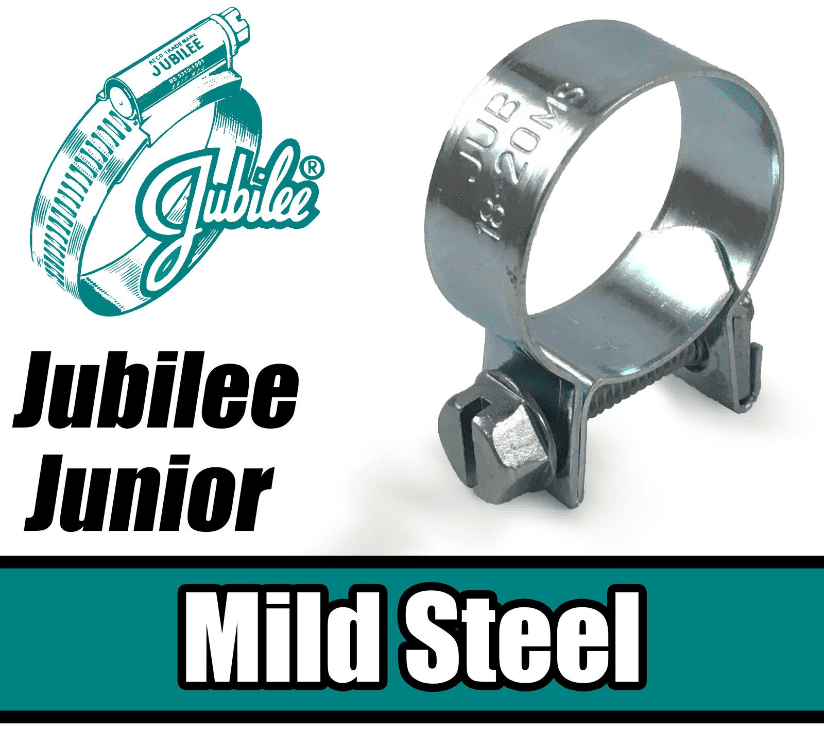

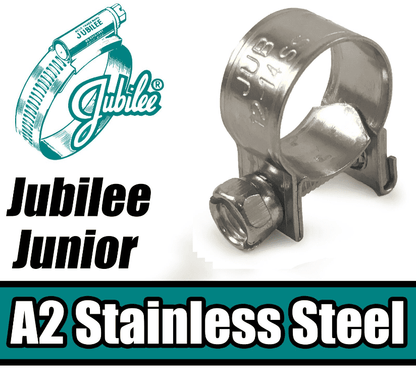

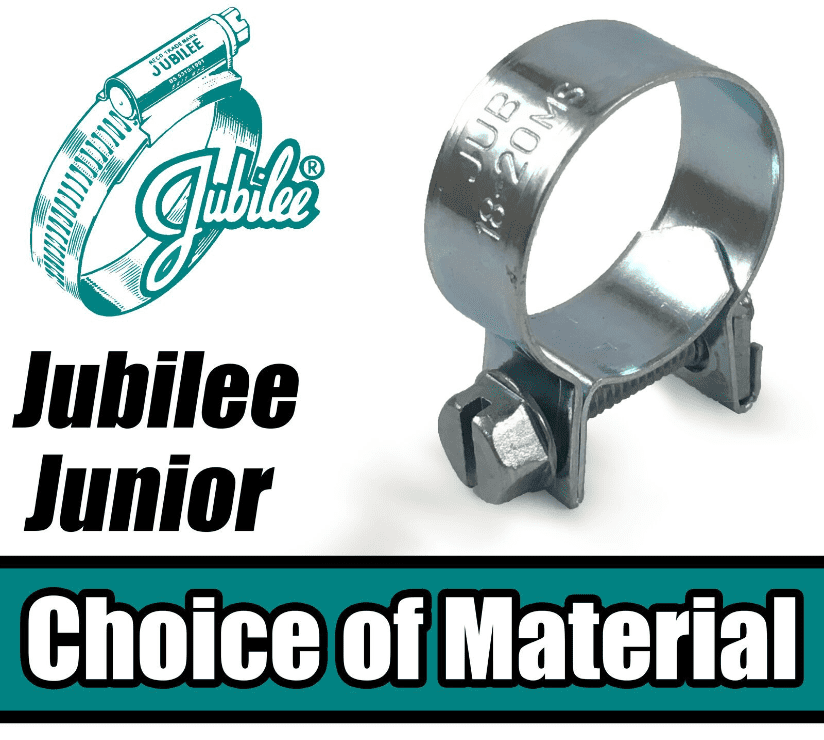

Jubilee Junior A2 Stainless/Mild Steel Pipe Clamps Hose Clips 7mm-20mm
Jubilee Junior A2 Stainless/Mild Steel Pipe Clamps Hose Clips 7mm-20mm
SKU:JCJ-MS-9_1
Couldn't load pickup availability
Description
Jubilee Junior Clips
For Pipe/Conduit/Hose use. Junior variant.
Jubilee Junior Clips are suitable for light-duty applications with plastic, rubber or metal hoses.
Ideal for fuel lines and hose pipes.
A two-part housing cuts through the band keeping the band straight at the point of engagement and fully engaging all of the screw thread; giving a superior tightening torque.
Perfect for small tubing or piping. With a flexible band material, they can achieve a high level of friction even against a smooth surface such as a metal pole. The metallic material makes them useful on hot pipes where plastic ties are unsuitable.
Band width |
Recommended Torque |
Maximum Torque |
Maximum pressure |
Min. Diameter |
Max. Diameter |
|
(mm) |
(Nm) |
(Nm) |
(Psi / Bar) |
(mm) |
(mm) |
|
Jubilee® Junior Clip 7-9mm |
9.1 |
1.5 |
2 |
75 |
7 |
9 |
Jubilee® Junior Clip 8-10mm |
9.1 |
1.5 |
2 |
75 |
8 |
10 |
Jubilee® Junior Clip 9-11mm |
9.1 |
1.5 |
2 |
75 |
9 |
11 |
Jubilee® Junior Clip 10-12mm |
9.1 |
1.5 |
2 |
50 |
10 |
12 |
Jubilee® Junior Clip 11-13mm |
9.1 |
1.5 |
2 |
50 |
11 |
13 |
Jubilee® Junior Clip 12-14mm |
9.1 |
1.5 |
2 |
50 |
12 |
14 |
Jubilee® Junior Clip 13-15mm |
9.1 |
1.5 |
2 |
50 |
13 |
15 |
Jubilee® Junior Clip 14-16mm |
9.1 |
1.5 |
2 |
50 |
14 |
16 |
We have an extensive range of Genuine Jubilee Clips in various sizes and finishes. Browse our full selection of marine products for more options.
If you need any assistance or for bulk orders please do not hesitate to contact us.
