Hex Drive Insert Fixing Type D Wood Insert Nuts M4 M5 M6 M8 M10 Thread

D TYPE (FLANGED) INSERT NUTS.

Very easy to use simply drill the recommended hole for the size insert, screw the self tapping body into the material.

The unique external thread ensures strong resistance against pull out and the flanged head prevents splitting of the surfaces and driving the Insert in too far.

Insert Nuts provide a strong, permanent thread for wood and wood based sheet materials

Colour finish: Zinc & yellow (may vary)

Material: Zinc Alloy Die Cast

We have the most choice of size and quantity on Ebay (if you require a different quantity we will be happy to provide a price)

SIZE: RECOMMENDED

HOLE SIZE:

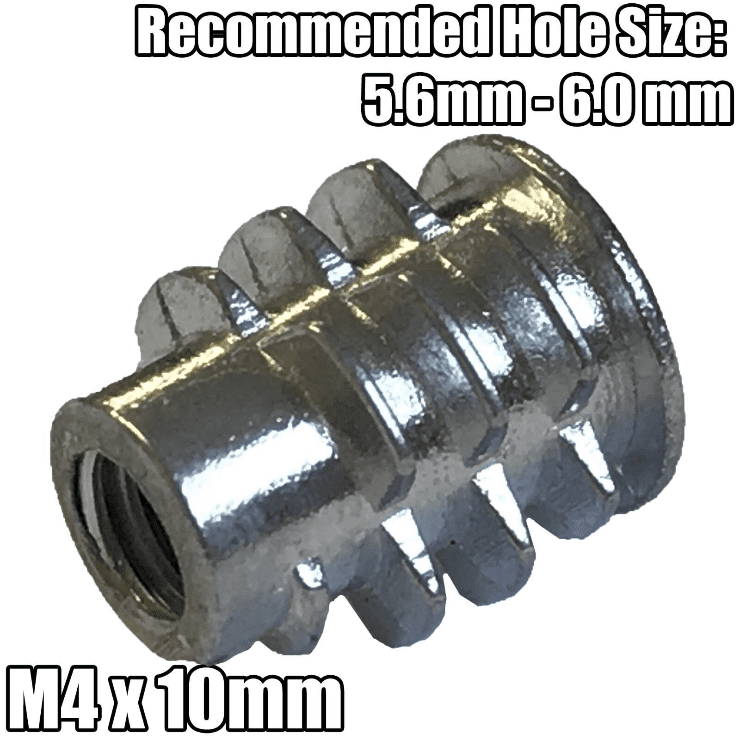

M4 x 10 5.6 - 6.0 mm

M5 x 10 7.5 - 7.9 mm

M5 x 13 7.5 - 7.9 mm

M5 x 20 7.9 - 8.7 mm

M6 x 10 8.7 - 9.1 mm

M6 x 13 8.7 - 9.1 mm

M6 x 16 8.7 - 9.1 mm

M6 x 20 8.7 - 9.1 mm

M6 x 25 8.7 - 9.1 mm

M8 x 13 11.0 - 11.5 mm

M8 x 20 11.0 - 11.5 mm

M8 x 25 11.0 - 11.5 mm

M10 x 13 12.7 - 13.1 mm

M10 x 25 12.7 - 13.1 mm
