Flat Strip D Shackles Fastener Stainless Steel A4 Marine Grade 316 M4 M5 M6 M8
Flat Strip D Shackles Fastener Stainless Steel A4 Marine Grade 316 M4 M5 M6 M8
SKU:STRIP-DSHACKLE-A4-4_1
Regular price
£4.49 GBP
Regular price
Sale price
£4.49 GBP
Unit price
per
Including VAT.
Delivery calculated at checkout.
Couldn't load pickup availability

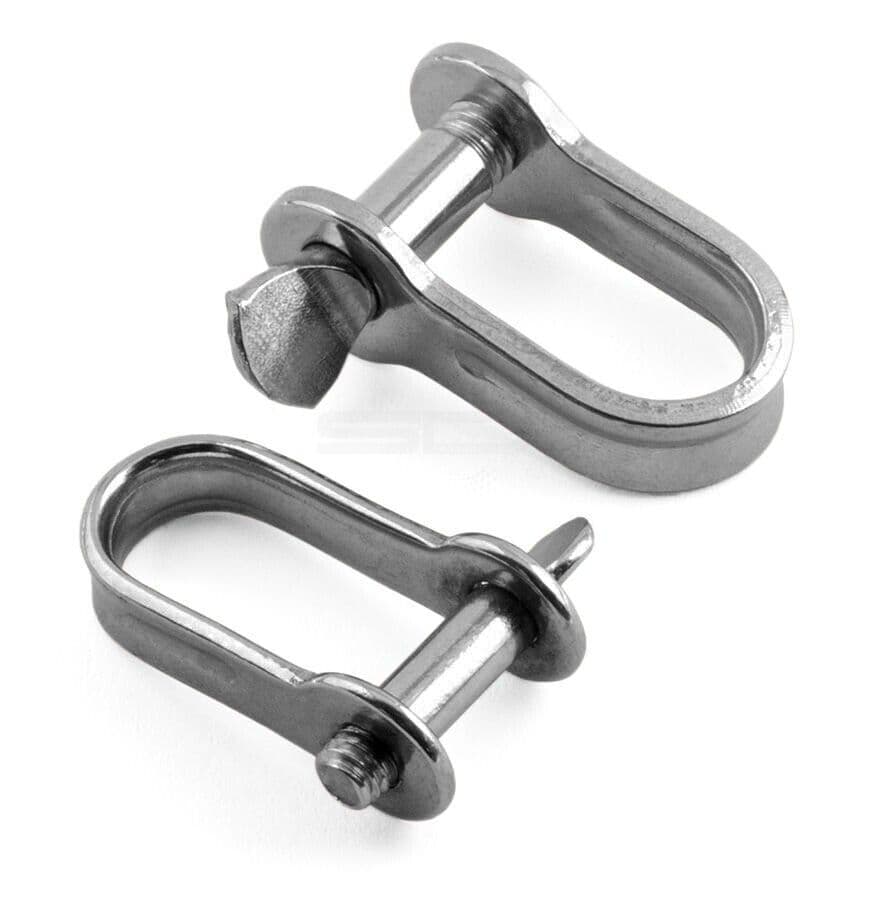

Strip/Flat D-Shackle Screwpin
Product Description
Strip/Flat-type D-shackle. Manufactured from A4 Marine Grade 316 stainless steel for the best corrosion resistance in and around salt-water.
These shackles come with a screw pin that can be easily fastened to provide a strong and secure fit, perfect for rigging or other industrial uses where corrosion resistance and high tensile strength are required, such as cabling or lifting. Range of sizes available.
The flat style shackle is useful in situations demanding a more lightweight and compact shackle
Material
A4, 316 Marine Grade Stainless Steel. Marine grade stainless steel provides maximum corrosion resistance in salt-water marine environments.

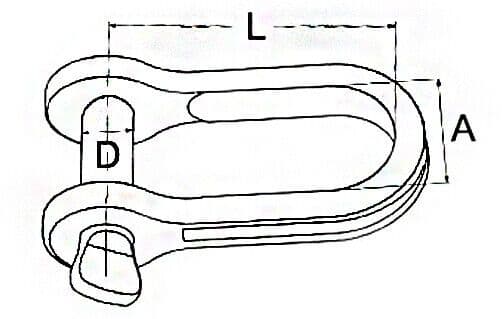

Dimensions (Please refer to the provided image for the sizing chart reference)
[A] Shackle Width | [D] Pin Width | [L] Shackle Length
[A] [D] [L]
M4 | 9mm | 4mm | 20mm
M5 | 10.5mm | 5mm | 21mm
M6 | 13.5mm | 6mm | 28mm
M8 | 20mm | 8mm | 45mm
Please be sure to get in contact if you require more specifications, quantities or shackle types.
