D-Shackles Twisted Eye Rigging Sailing Stainless Steel A4 316 Sizes M4 to M12
D-Shackles Twisted Eye Rigging Sailing Stainless Steel A4 316 Sizes M4 to M12
SKU:TWISTED-DSHACKLE-A4-4_1
Regular price
£4.79 GBP
Regular price
Sale price
£4.79 GBP
Unit price
per
Including VAT.
Delivery calculated at checkout.
Couldn't load pickup availability

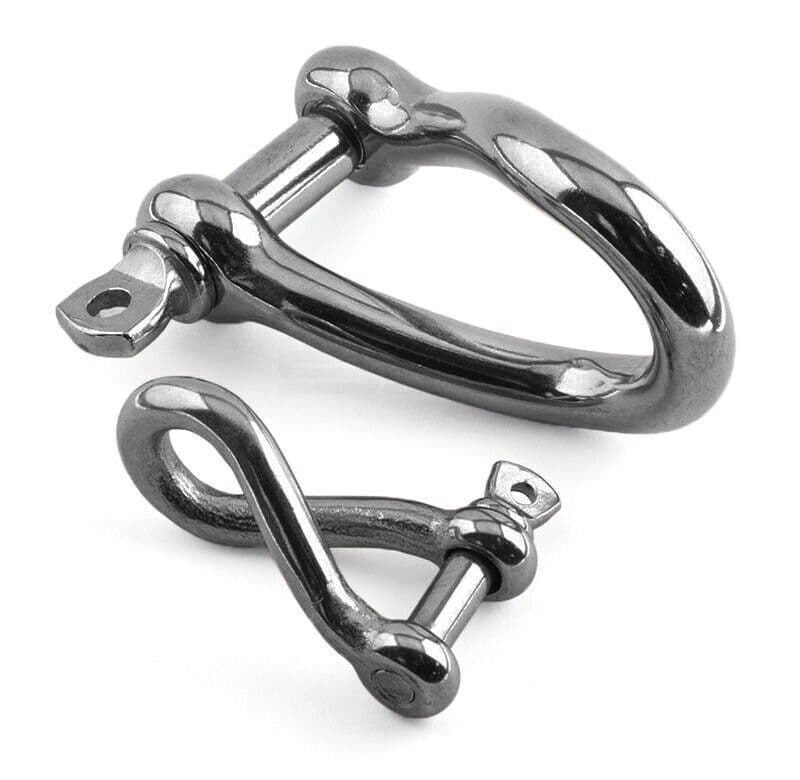

Stainless Steel Twisted Eye Shackles
Product Description
Material
316 / A4 Stainless Steel material makes these shackles ideal for outdoor and marine use, resistant to corrosion and salt water environments.
Used as a linking mechanism between two objects, ensuring that one is effectively oriented at a 90-degree angle to the other, making these shackles an ideal choice for minimizing twisting in yacht rigging.
316 / A4 Stainless Steel material makes these shackles ideal for outdoor and marine use, resistant to corrosion and salt water environments.
Dimensions

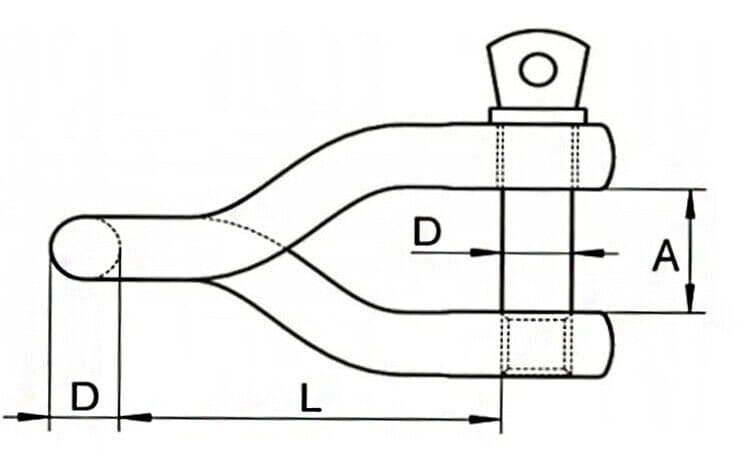

Please refer to the provided image chart for references
[A] = Width of Shackle opening [D] = Width of Shackle/Lock [L] = Length of Shackle
Shackle Size | [A] | [D] | [L]
M4 | 8mm | 4mm | 24mm
M5 | 10mm | 5mm | 30mm
M6 | 12mm | 6mm | 36mm
M8 | 16mm | 8mm | 48mm
M10 | 20mm | 10mm | 60mm
M12 | 24mm | 12mm | 72mm
