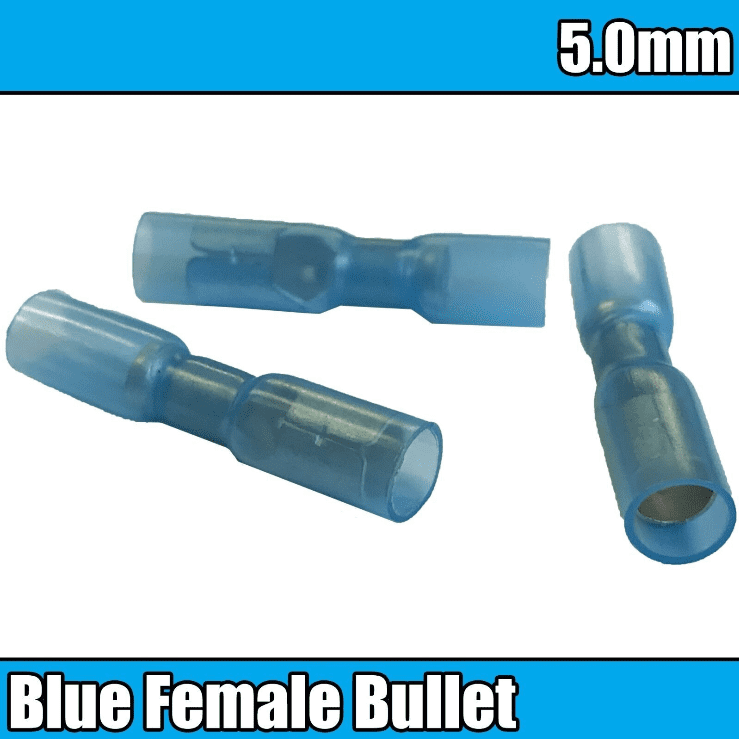

Blue Female Bullet Heat Shrink Terminal Electrical Connector
Blue Female Bullet Heat Shrink Terminal Electrical Connector
SKU:HSBBR50_1
Regular price
£2.19 GBP
Regular price
Sale price
£2.19 GBP
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Blue Heat Shrink Bullet
Wire: 1.1mm²-2.5mm² Cable 16-14 AWG
Insulated material: Heat Shrinkable Tube
Plating: Electro-Tin Plated
Terminal Material: Copper
Maximum Temperature: 105ËC
Maximum Shrink Temperature: 150ËC
Maximum Electrical Rating: 600 Volts
Once Crimped and ready, heat the terminal, and you will see it has now formed around the wire creating an air-tight, water-resistant bond.
3:1 Heat Shrink Ratio
