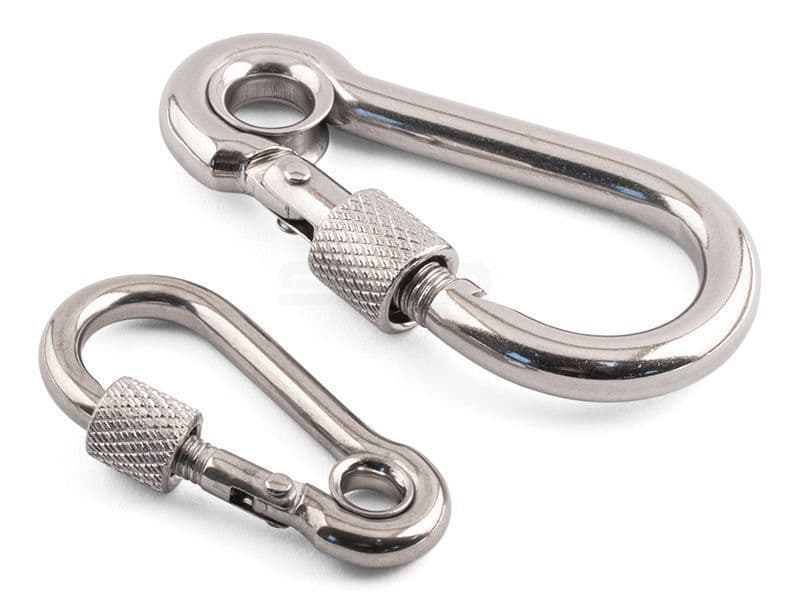

A4 Stainless Steel Carabiner Spring Hook Eyelet and Lock Safety Nut 4m

Spring-Hook Carabiner Snap Clips with Eyelets & Safety Nut

Made From A4 STAINLESS STEEL, 316 Marine Grade

Able to withstand the harshest conditions and high salt environments with maximum corrosion resistance. Making these carabiners ideal for

shipping and rigging uses

The Safety nut will lock the carabiner closed preventing accidental opening of the hook

The eyelet provides a secure thread for cable to be inserted through which will keep it in position regardless of rotation of the hook.

Dimensions:

Please see the available dimension guide picture

D: Springhook Thickness.

A: Eyelet Width

L: Springhook Length

| [D] | [A] | [L] | Breaking Load

M4 x 40mm | 4mm | 4.5mm | 40mm | 120Kg

M5 x 50mm | 5mm | 6mm | 50mm | 220Kg

M6 x 60mm | 6mm | 7mm | 60mm | 316Kg

M7 x 70mm | 7mm | 9mm | 70mm | 438Kg

M8 x 80mm | 8mm | 10mm | 80mm | 560Kg

M10 x 100mm | 10mm | 13mm | 100mm | 764Kg

M12 x 140mm | 12mm | 18mm | 140mm | 927Kg

Breaking Loads are based on specifications provided to us and may not be reflective of the product.

Always make sure to check the breaking load yourself before attempting

to use the product for heavy lifting or in dangerous environments.
