A4 Marine Grade Stainless Steel Bow Shackle Screw Pin Fastener M4-M25

Product Description

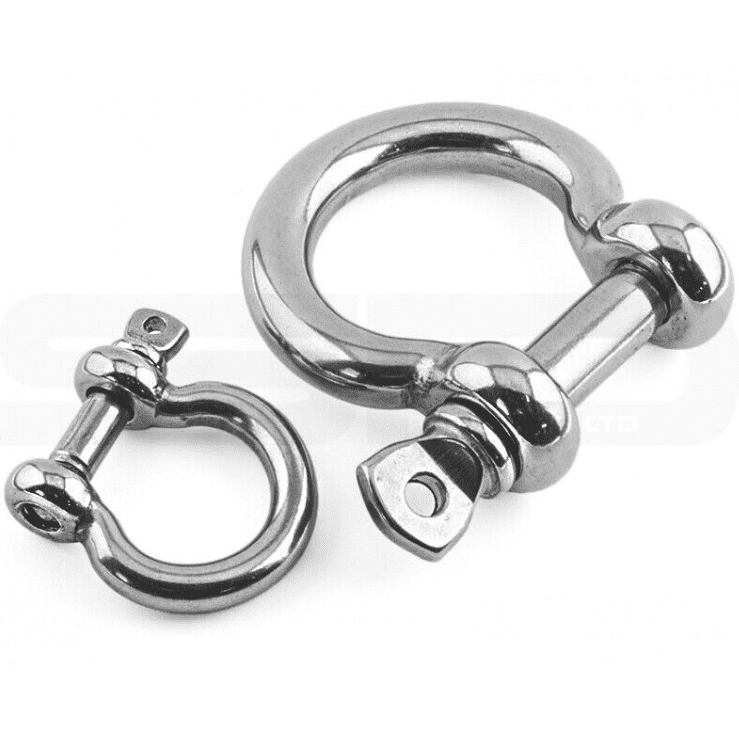

Bow shaped shackles with a removable collared pin, often used in lifting and rigging systems, or chain linking.

Boasting a high strength and breaking load, these heavy duty parts are perfect for the job.

Material

A4, 316 Marine Grade Stainless Steel. Marine grade stainless steel provides maximum corrosion resistance in salt-water marine environments.

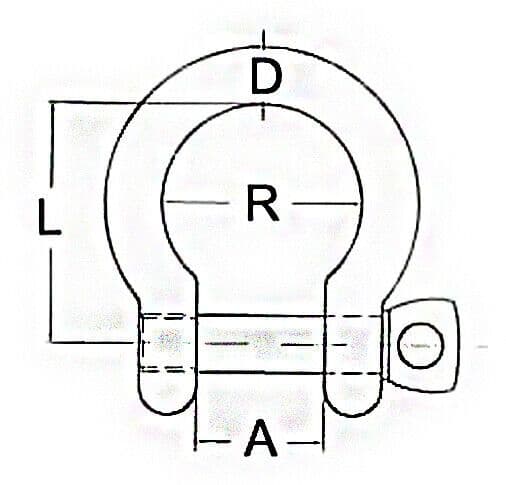

Dimensions (Please refer to the provided image for the sizing chart reference)

[A]=Shackle opening Width [L]=Length of shackle from pin to internal edge [R]=Interior Diameter of Shackle

(D is equal to the size of bolt chosen, EG: M4 = 4mm D)

M4; [A] 8mm [L] 16mm [R] 14mm - BREAKING LOAD: 585KG

M5; [A] 10mm [L] 20mm [R] 17mm - BREAKING LOAD: 919KG

M6; [A] 12mm [L] 24mm [R] 21mm - BREAKING LOAD: 1332KG

M8; [A] 16mm [L] 32mm [R] 28mm - BREAKING LOAD: 2393KG

M10; [A] 20mm [L] 40mm [R] 35mm - BREAKING LOAD: 3767KG

M12; [A] 24mm [L] 48mm [R] 42mm - BREAKING LOAD: 5544KG

M14; [A] 28mm [L] 56mm [R] 49mm - BREAKING LOAD: 7554KG

M16; [A] 32mm [L] 64mm [R] 56mm - BREAKING LOAD: 9867KG

M19; [A] 38mm [L] 76mm [R] 66mm - BREAKING LOAD: 15,350KG

M22; [A] 44mm [L] 88mm [R] 77mm - BREAKING LOAD: 18,654KG

M25; [A] 50mm [L] 100mm [R] 88mm - BREAKING LOAD: 22,600KG
