A4 Stainless Steel Marine R Clips Beta Pins Clevis Cotter Pivot Pins

Product Description

Stainless steel Beta pins, also known as R-Clips are designed for securing clevis pins, cotter pins and other forms of pivot pins. They are often used to secure canopy frames and other deck-mounted items that need to be easily removed.

Material

A4, 316 Marine Grade Stainless Steel. Marine grade stainless steel provides maximum corrosion resistance in salt-water marine environments.

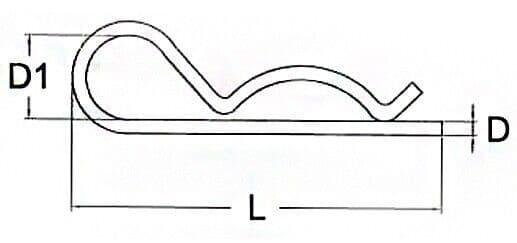

Dimensions (Please refer to the provided image for the sizing chart reference)

[D1]=Interior Width [D]=Thickness of Pin [L]=Total Length

2mm; [D] 2mm [D1] 10mm [L] 48mm

2.5mm; [D] 2mm [D1] 11mm [L] 54mm

3mm; [D] 3mm [D1] 16mm [L] 70mm

4mm; [D] 4mm [D1] 19mm [L] 78mm

5mm; [D] 5mm [D1] 26mm [L] 100mm

6mm; [D] 6mm [D1] 30mm [L] 125mm
