A4 316 Stainless Steel D Shackle With Screw Pin Rigging Lock 4mm-32mm

Product Description

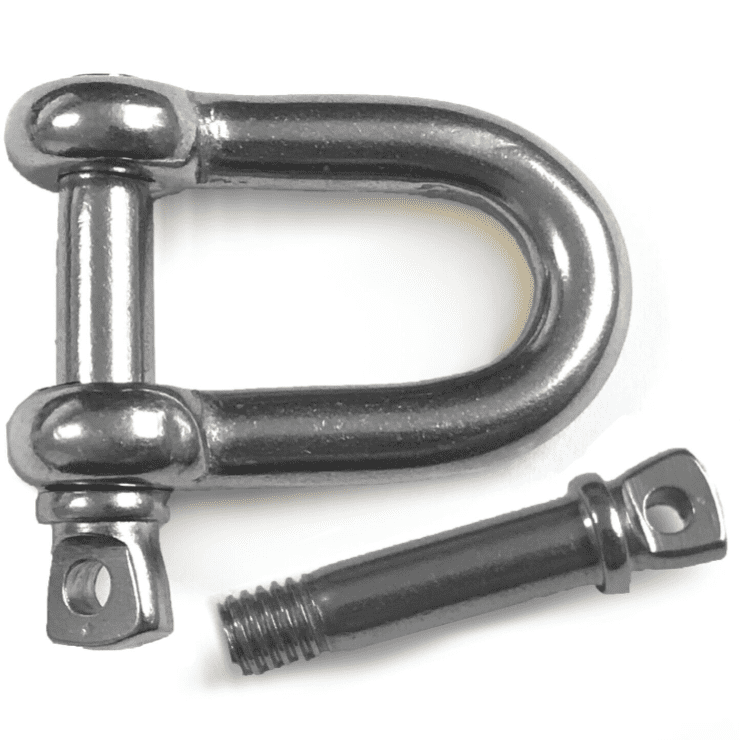

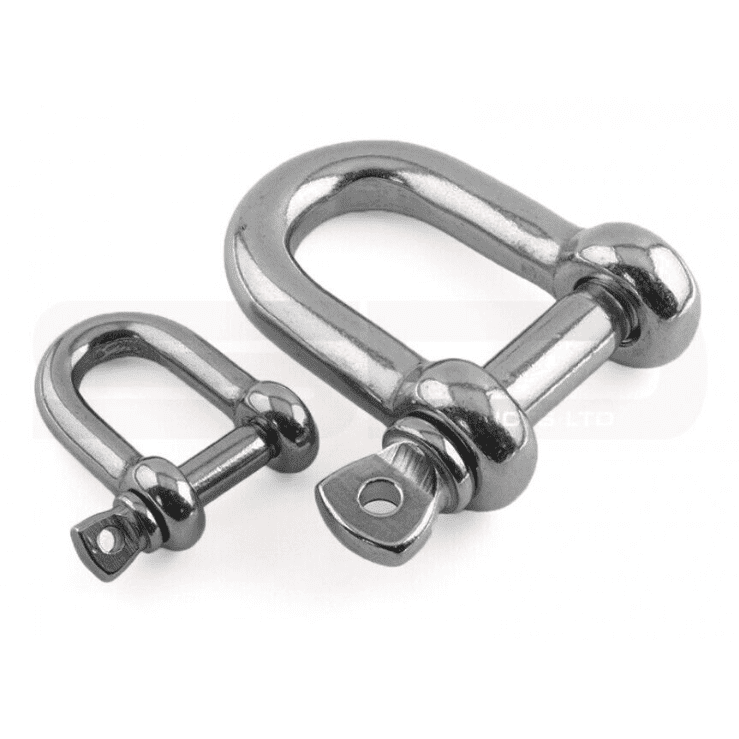

Stainless steel D-shackle. Manufactured from A4 Marine Grade 316 stainless steel for the best corrosion resistance in and around salt water. These shackles come with a screw pin that can be easily fastened to provide a strong and secure fit, perfect for rigging or other industrial uses where corrosion resistance and high tensile strength are required, such as cabling. Range of sizes available.

Material

A4, 316 Marine Grade Stainless Steel. Marine-grade stainless steel provides maximum corrosion resistance in salt-water marine environments.

Dimensions (Please refer to the provided image for the sizing chart reference)

[A]=Interior Width [D]=Thickness of shackle [L]=Interior Length

1 kN is equal to 101 Kilograms

4mm; [A] 8mm [D] 4mm [L] 16mm - BREAKING LOAD: 5.8kN / ~590kg
5mm; [A] 10mm [D] 5mm [L] 20mm - BREAKING LOAD: 9.1kN / ~925kg
6mm; [A] 12mm [D] 6mm [L] 24mm - BREAKING LOAD: 13.2kN / ~1345kg
8mm; [A] 16mm [D] 8mm [L] 32mm - BREAKING LOAD: 23.7kN / ~2410kg
10mm; [A] 20mm [D] 10mm [L] 40mm - BREAKING LOAD: 37.3kN / ~3800kg
12mm; [A] 24mm [D] 12mm [L] 48mm - BREAKING LOAD: 54.9kN / ~5595kg
14mm; [A] 28mm [D] 14mm [L] 56mm - BREAKING LOAD: 74.8kN / ~7625kg

16mm; [A] 32mm [D] 16mm [L] 64mm - BREAKING LOAD: 97.7kN / ~9960kg

19mm; [A] 38mm [D] 19mm [L] 76mm - BREAKING LOAD: 152.6kN / ~15,560kg

22mm; [A] 44mm [D] 22mm [L] 88mm - BREAKING LOAD: 184.7kN / ~18,830kg

25mm; [A] 50mm [D] 25mm [L] 100mm - BREAKING LOAD: 223.8kN / ~22,820kg

32mm; [A] 64mm [D] 32mm [L] 128mm - BREAKING LOAD: 353.6kN / ~36,050kg
