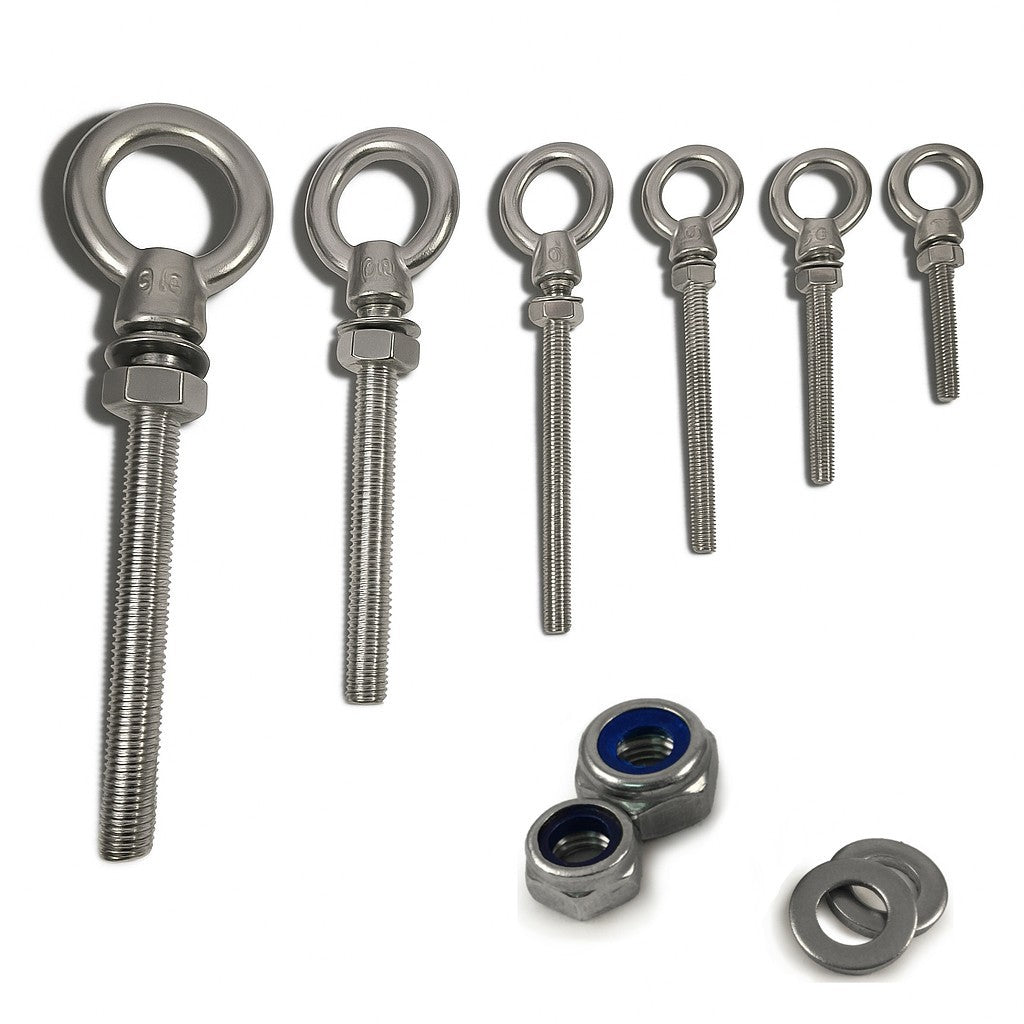

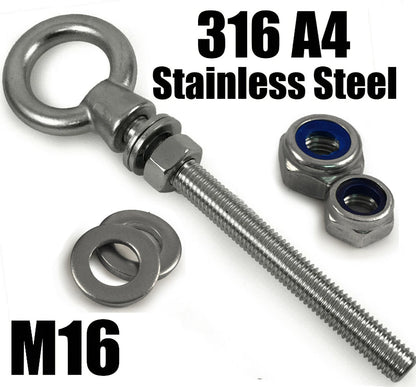

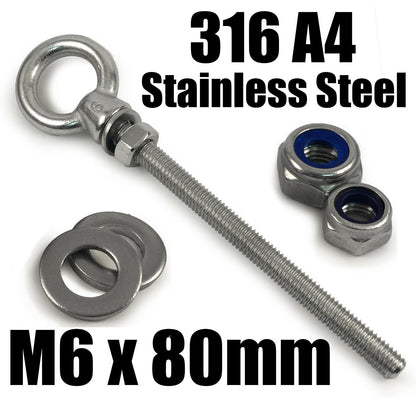

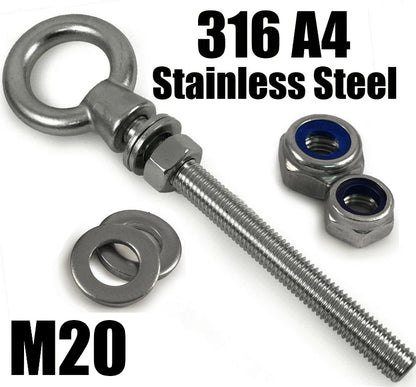

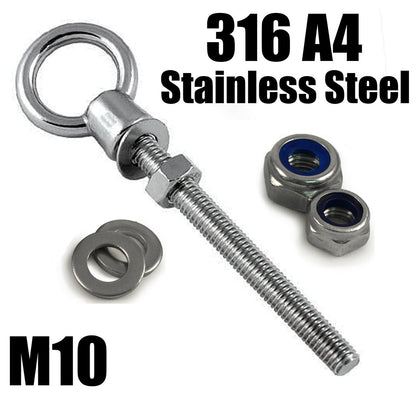

A4 316 Marine Grade Stainless Steel Long Eye Bolt + Hex Nut + Nyloc Nut M6 - M20

A4 316 Marine Grade Stainless Steel

Long Shank Lifting Eye Bolts with Hex Nut, Nyloc Nut and Washers

Lifting Eye bolts designed to hold and lift heavy loads through a wide variety of applications

The A4 Marine grade stainless steel provides maximum corrosion resistance and

allows these to be used in high salt level environments making them the ideal part of choice.

Highest quality and durability, able to hold heavy weight and withstand large pulling force.

Every pack includes 1 Hex Nut and 1 Nyloc nut + 2 Washers with every Eye Bolt.

Specifications;

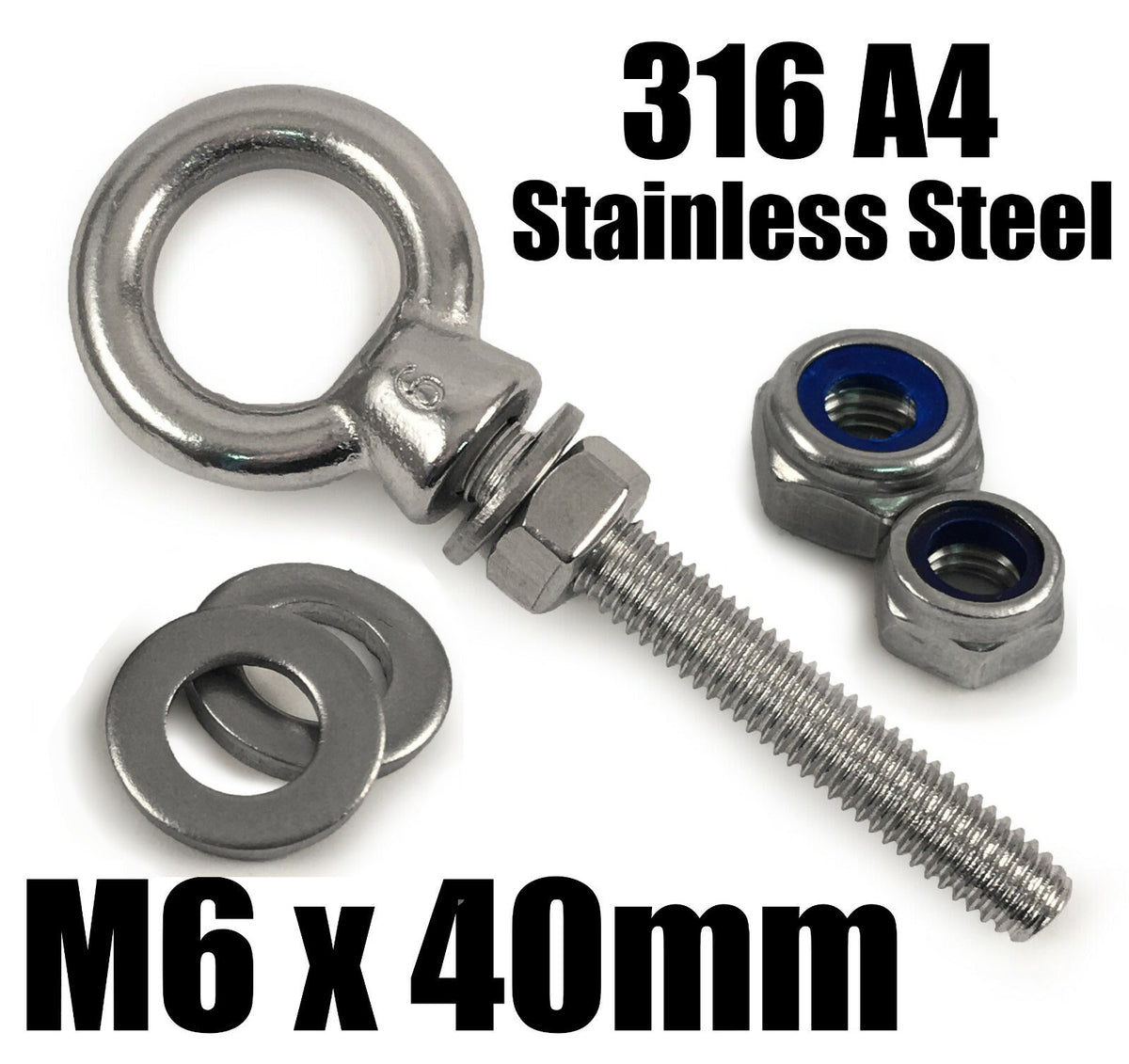

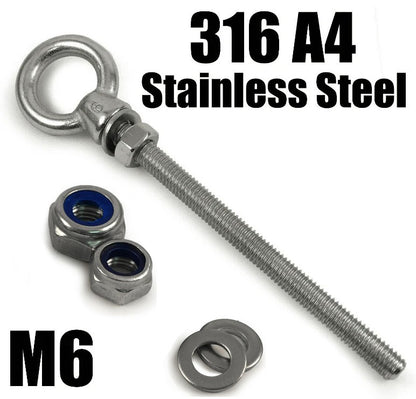

M6 x 40mm
Thread length: 40mm
Inside diameter: 15mm
Overall height: 70mm
Breaking load: 1150kg
Safe working load: 230kg

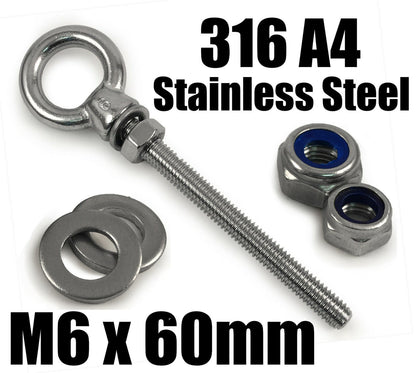

M6 x 60mm
Thread length: 60mm
Inside diameter: 15mm
Overall height: 90mm
Breaking load: 1150kg
Safe working load: 230kg

M6 x 110mm
Thread length: 110mm
Inside diameter: 15mm

Breaking load: 1150kg
Safe working load: 230kg

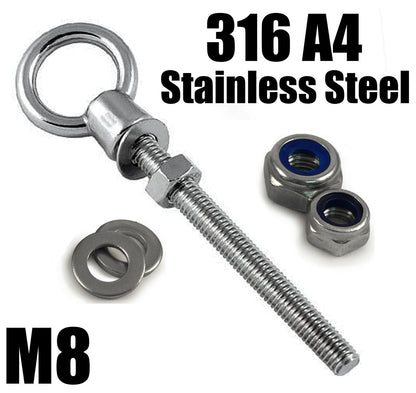

M8 x 50mm

Thread length: 50mm
Inside Diameter: 20mm
Breaking load: 1300kg
Safe working load: 260kg

M8 x 80mm

Thread length: 80mm
Inside Diameter: 20mm
Breaking load: 1300kg
Safe working load: 260kg

M8 x 100mm
Thread length: 100mm
Inside Diameter: 20mm
Overall height: 140mm
Breaking load: 1300kg
Safe working load: 260kg

M8 x 150mm

Thread length: 150mm
Inside Diameter: 20mm
Breaking load: 1300kg
Safe working load: 260kg

M8 x 200mm
Thread length: 200mm
Inside Diameter: 20mm
Breaking load: 1300kg
Safe working load: 260kg

M10 x 50mm
Thread length: 50mm
Inside Diameter: 25mm
Breaking load: 1800kg
Safe working load: 360kg

M10 x 80mm
Thread length: 80mm
Inside Diameter: 25mm
Breaking load: 1800kg
Safe working load: 360kg

M10 x 100mm
Thread length: 100mm
Inside Diameter: 25mm
Overall height: 150mm
Breaking load: 1800kg
Safe working load: 360kg

M10 x 150mm
Thread length: 150mm
Inside Diameter: 25mm
Breaking load: 1800kg
Safe working load: 360kg

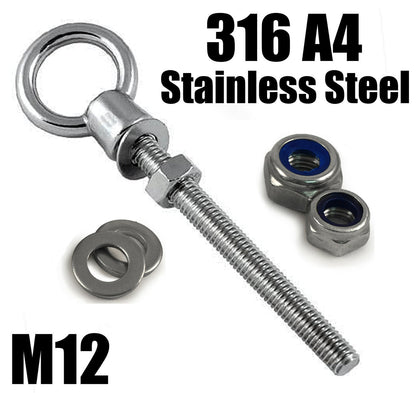

M12 x 120mm
Thread length: 120mm
Inside Diameter: 30mm
Overall height: 180mm
Breaking load: 2500kg
Safe working load: 500kg
