Unbranded

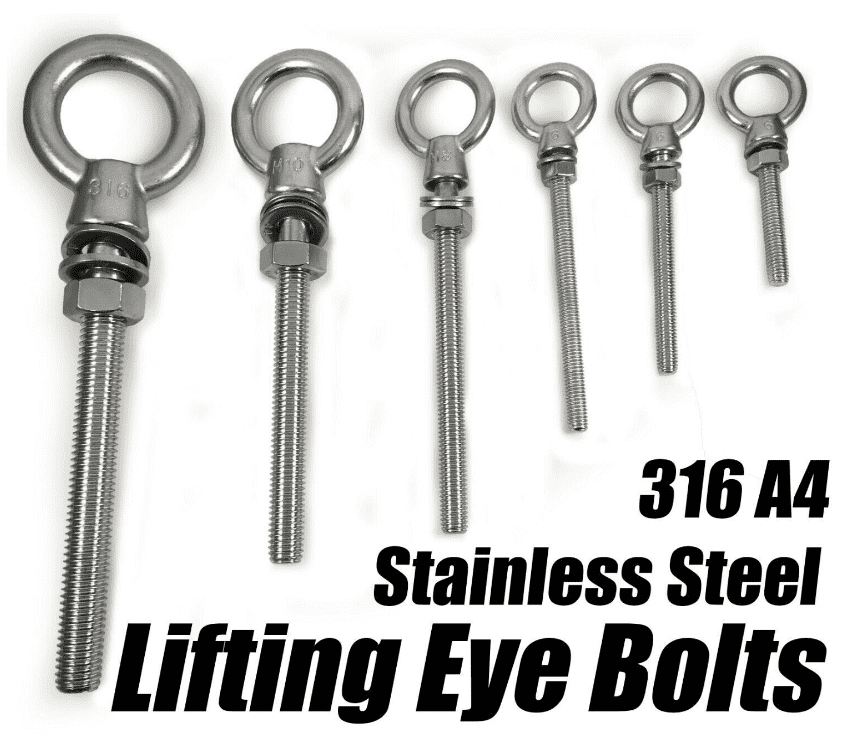

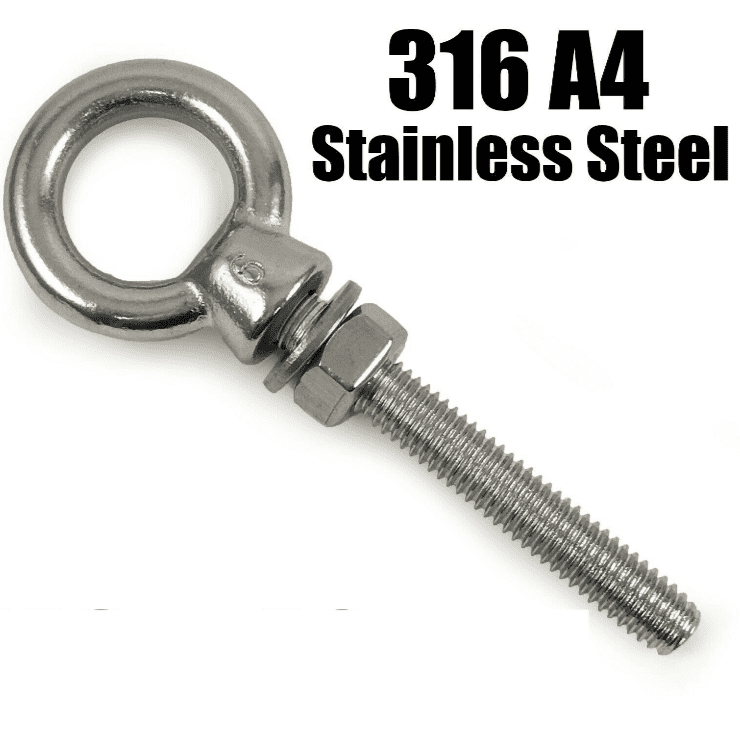

A4 316 Marine Grade Stainless Steel Lifting Eye Bolt Longshank Nut M6 M8 M10 M12
A4 316 Marine Grade Stainless Steel Lifting Eye Bolt Longshank Nut M6 M8 M10 M12
SKU:EYE-BOLT-A4-LONG-10100_1
Regular price
£8.22 GBP
Regular price
Sale price
£8.22 GBP
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
A4 316 Marine Grade Stainless Steel
Long Shank Lifting Eye Bolts
Lifting Eye bolts are designed to hold and lift heavy loads through a wide variety of applications.
The A4 Marine grade stainless steel provides maximum corrosion resistance and
allows these to be used in high salt level environments making them the ideal part of choice.
Highest quality and durability, able to hold heavy weight and withstand large pulling force.
Specifications;
M6 x 40
Thread length: 40mm
Inside diameter: 15mm
Overall height: 70mm
Breaking load: 1150kg
Safe working load: 230kg
M6 x 60
Thread length: 60mm
Inside diameter: 15mm
Overall height: 90mm
Breaking load: 1150kg
Safe working load: 230kg
M8 x 100
Thread length: 100mm
Inside Diameter: 20mm
Overall height: 140mm
Breaking load: 1300kg
Safe working load: 260kg
M10 x100
Thread length: 100mm
Inside Diameter: 25mm
Overall height: 150mm
Breaking load: 1800kg
Safe working load: 360kg
M12 x120
Thread length: 120mm
Inside Diameter: 30mm
Overall height: 180mm
Breaking load: 2500kg
Safe working load: 500kg
Thread length: 40mm
Inside diameter: 15mm
Overall height: 70mm
Breaking load: 1150kg
Safe working load: 230kg
M6 x 60
Thread length: 60mm
Inside diameter: 15mm
Overall height: 90mm
Breaking load: 1150kg
Safe working load: 230kg
M8 x 100
Thread length: 100mm
Inside Diameter: 20mm
Overall height: 140mm
Breaking load: 1300kg
Safe working load: 260kg
M10 x100
Thread length: 100mm
Inside Diameter: 25mm
Overall height: 150mm
Breaking load: 1800kg
Safe working load: 360kg
M12 x120
Thread length: 120mm
Inside Diameter: 30mm
Overall height: 180mm
Breaking load: 2500kg
Safe working load: 500kg
