30x Trim Clip Set for Audi A7 Engine Undertray Wheel Arch Door Panel

SKU:2438_5 + 3135_5 + 3384_10 + 0986_10

£12.19 GBP

Sale Sold out

Including VAT. Delivery calculated at checkout.

Quantity

Description

Audi Replacement Body Fasteners

Pack of 30

A set of 4 commonly used fastener clips for Audi A Series, Q Series and more

Used for various body panel work and the engine cover/undertray.

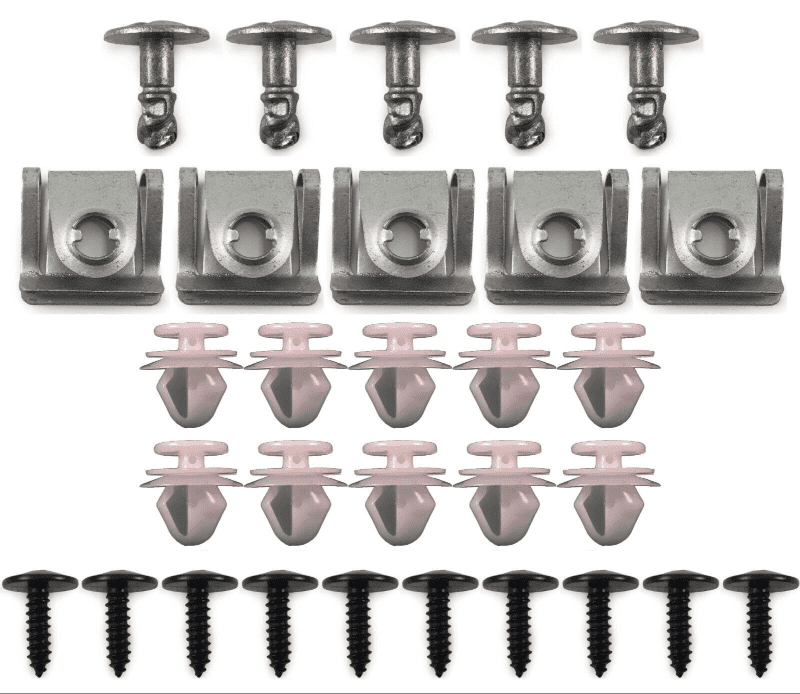

The set includes:

5 x Engine Cover Screw to fit an 8mm hole Nut

5 x Engine Undertray Fastener nuts

10 x Torx Head Screw to fit a 4.8mm x 16mm

10 x Moulding Clips to fit an 8mm hole

Equivalent to OEM Part Numbers:

Metal Clip: 8D0805960

Metal Screw for above: 8D0805121

White Clip: Renault: 7701056846, 77 01 056 846 / Peugeot: 6991S6 / VW Audi Group: 8E9867299, 8E9 867 299 / Volvo: 30648141

Black Torx Screw: N90775001

Dimensions:

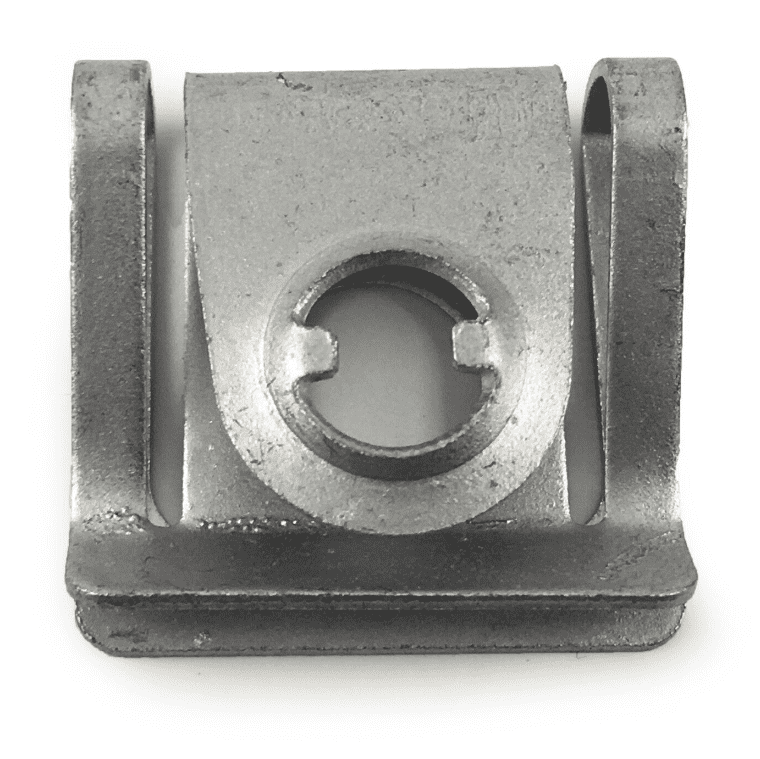

Metal Clip:

24mm x 25mm

Hole: 8.9mm

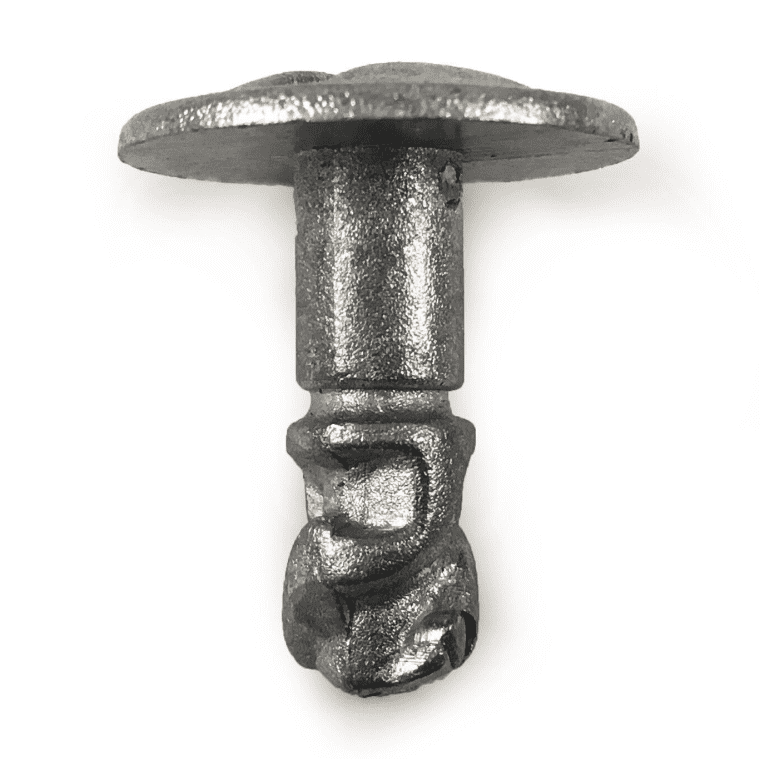

Metal Screw:

Fits Hole Size 8.9mm

Head Size 18mm

Stem Length 18mm

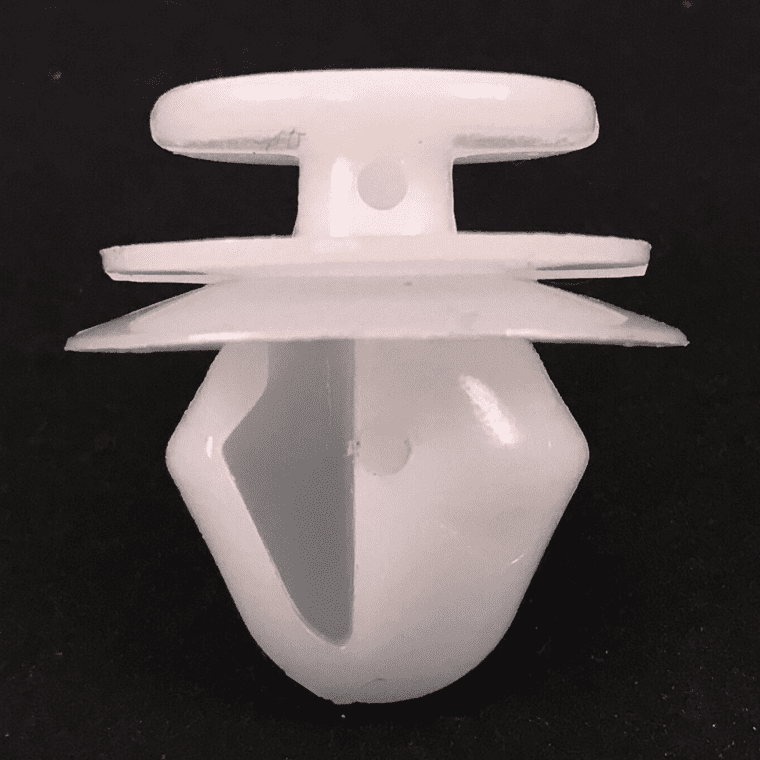

White Clip:

Top Head Diameter : 13mm

Diameter : 18mm

Total Height: 18mm

Fits 10mm hole

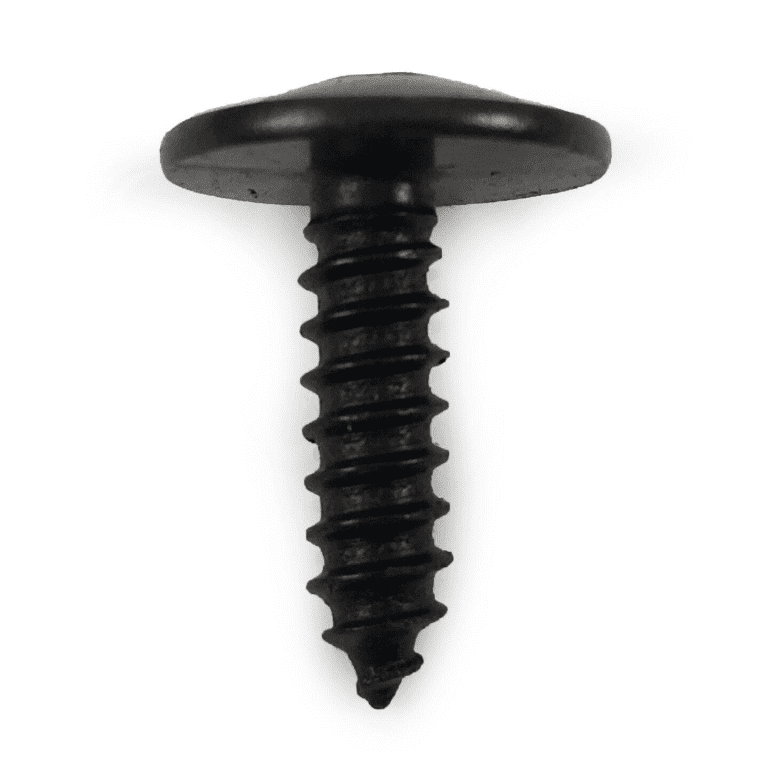

Black Screw:

Fits Hole Size 4.8mm

Head Size 15mm

Stem Length 16mm

These clips are used on a wide range of models, please use the provided image and OEM numbers to confirm these are the correct parts for you.
